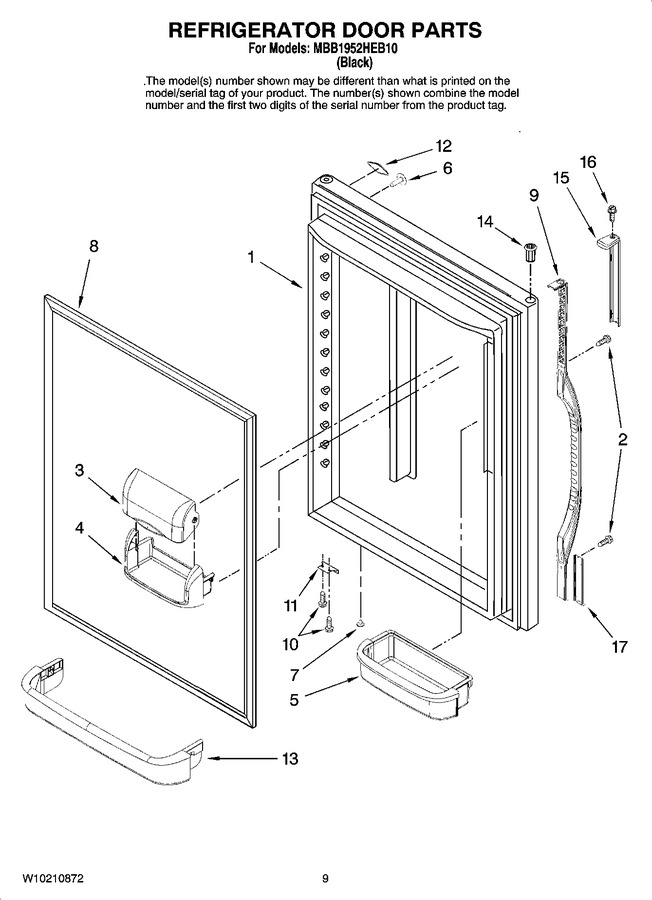

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658501BQ | Door, Refrigerator (black) (Replaces: 67001136) |
|
$ 703.63 | |||||
| 2 | 67006682 | Screw-handle (2) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 67003637) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67001021 | Bucket, Door (medium (2)) (Replaces: 67001021) |
|
$ 84.95 | |||||
| 5 | 67001141 | Bucket, Door (small (2)) |
|
Immediately | $ 78.91 | ||||
| 6 | WP12246608 | Plug, Handle Hole (black) (Replaces: 12246603) |
|
Immediately | $ 8.15 | ||||
| 7 | A3076901 | Plug, Button (2) (black) |
|
$ 5.70 | |||||
| 8 | WPW10436245 | Gasket, Door (black) (Replaces: W10164031) |
|
$ 362.36 | |||||
| 9 | 67003130 | Handle, Door (black) |
|
- | |||||
| 10 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 14.75 | ||||
| 12 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 13 | 12690501 | Retainer, Ref Door |
|
$ 41.75 | |||||
| 14 | 67004978 | Bushing (4) (black) |
|
$ 22.10 | |||||
| 15 | 67005132 | Trim, Handle-top (black) |
|
- | |||||
| 16 | 12248201 | Screw |
|
$ 5.48 | |||||
| 17 | 67005138 | Trim-handle, Bottom (black) |
|
- |
