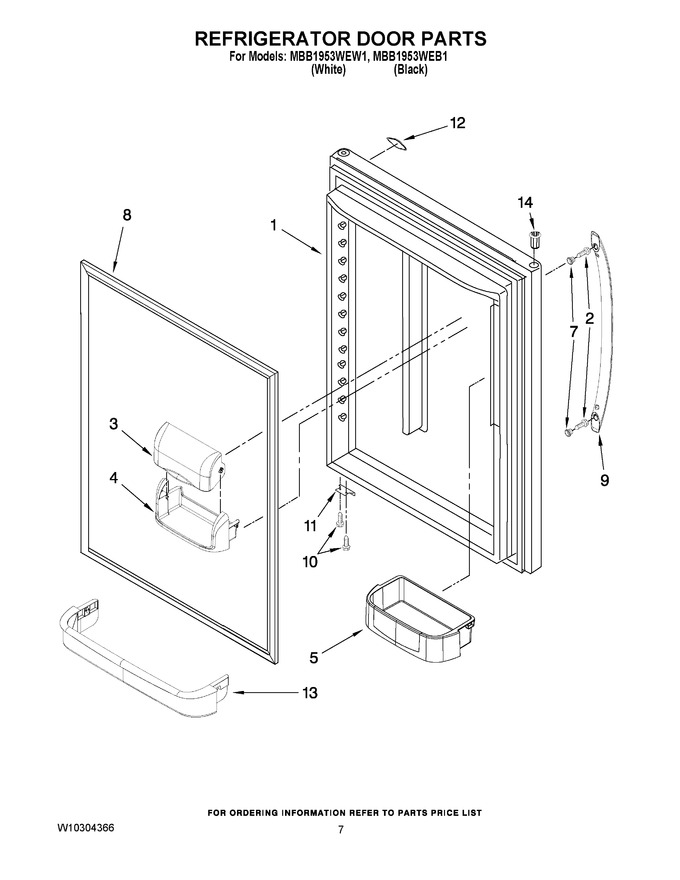

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658581BQ		Door, Refrigerator (black)		Appelez-nous	-
1	12658581WQ		Door, Refrigerator (white)		Appelez-nous	-
2	67006901		Screw, Handle   (Replaces: 12991703)			Immediately	$ 8.02
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	WP67004041		Bucket, Small (2)   (Replaces: 12801901V)				$ 84.77
5	67004040		Bucket, Medium (2)   (Replaces: 12801902V)				$ 91.42
7	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 11.96
8	WPW10436245		Gasket, Door (black)   (Replaces: W10164031)				$ 345.10
8	WPW10443309		Gasket, Door (white)   (Replaces: W10164030)			Immediately	$ 347.85
9	13004701B		Handle, Door (black)				$ 85.52
9	13004701W		Handle, Door (white)				$ 184.73
10	WP98165		Screw   (Replaces: 12990504)				$ 8.00
11	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.05
11	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 65.99
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 67.14
13	67001139		Retainer, Ref Door   (Replaces: 12557904)			Immediately	$ 99.80
14	67004978		Bushing (4) (black)   (Replaces: 10961006B)				$ 21.05
14	WP67004977		Bushing (4) (white)   (Replaces: 10961006W)				$ 7.81
