SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts

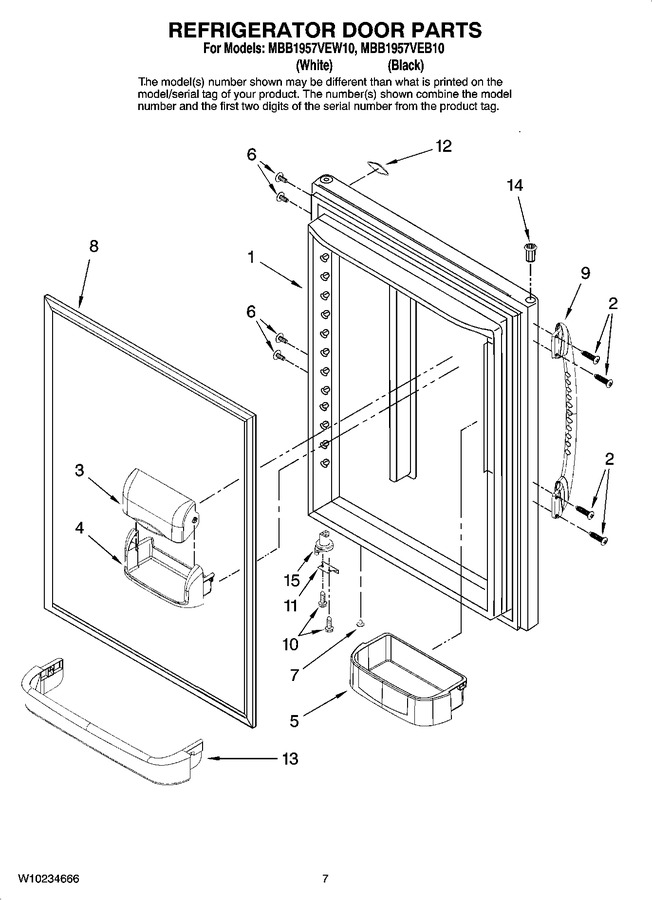

05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004036		Door, Refrigerator (black)		Appelez-nous	-
1	67004039		Door, Refrigerator (white)		Appelez-nous	-
2	67006668		Screw (4) (white)				$ 12.83
2	67006806		Screw (4) (black)				$ 14.02
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	67004040		Bucket, Door (medium (2))				$ 95.99
5	WP67004041		Bucket, Door (small (2))   (Replaces: 67004041)				$ 89.01
6	12991103		Screw (4) (white)				$ 12.03
6	67007166		Screw (4) (black)		Appelez-nous	-
7	10712401		Plug, Button (2) (white)				$ 7.79
7	67004838		Plug, Button (2) (black)				$ 11.21
8	WPW10436245		Gasket, Door (black)   (Replaces: W10164031)				$ 362.36
8	WPW10443309		Gasket, Door (white)   (Replaces: W10164030)			Immediately	$ 365.24
9	WP12781004W		Handle, Door (white)   (Replaces: 67006119)				$ 183.57
9	67006120		Handle, Door (black)		Appelez-nous	-
10	WP98165		Screw   (Replaces: 67006287)				$ 8.57
11	12968202W		Stop, Door (white)   (Replaces: 67003779)				$ 69.29
11	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
13	12690501		Retainer, Ref Door				$ 41.75
14	67004978		Bushing (4) (black)				$ 22.10
14	WP67004977		Bushing (4) (white)   (Replaces: 67004977)				$ 8.20
15	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
15	WP67003638		Closure, Door (white)   (Replaces: 67003638)			Immediately	$ 8.15

    View Diagram in Separate Window       Print Part List
