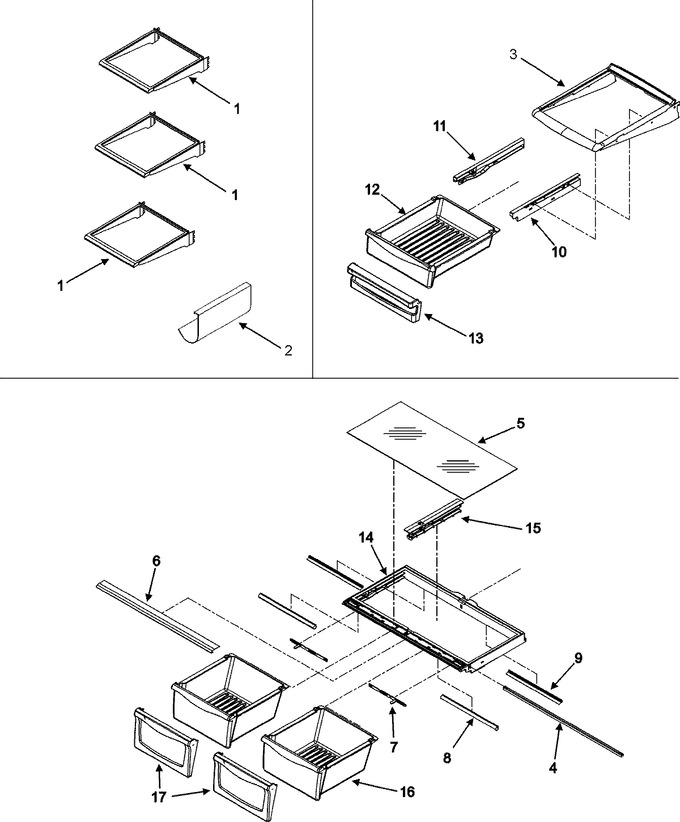

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004059		Shelf, Glide Out	10	Appelez-nous	-
2	10448903		Rack, Bottle	10	Appelez-nous	-
3	W11402522		Shelf, Stationary   (Replaces: 67004062)	10			$ 203.51
4	WP12227302WD		Brace, Crisper E-ct   (Replaces: 67001155)	10			$ 106.29
5	WP67006877		Glass, Crisper   (Replaces: 67001156)	10		Immediately	$ 209.75
6	67003879		Extr, Front Crisper	10	Appelez-nous	-
7	WP67005864		Slide, Humidity Control   (Replaces: Y67001287)	10		Immediately	$ 7.81
8	67001158		Seal, Front Crisper	10			$ 6.93
9	67002274		Seal, Rear Crisper	10			$ 8.61
10	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.02
10	WP67001053		Glide (rt)   (Replaces: 67001053)	10		Immediately	$ 9.24
11	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.02
11	WP67001054		Glide (lt)   (Replaces: 67001054)	10		Immediately	$ 8.40
12	WP67001308		Pan, Deli   (Replaces: 67001308)	10		Immediately	$ 138.10
13	67004060		Front, Meat Pan	10	Appelez-nous	-
14	WPW10671240		Frame, Crisper   (Replaces: 67001153)	10		Immediately	$ 138.10
15	WPW10671238		Rail, Center Crisper   (Replaces: 67001057)	10		Immediately	$ 112.82
16	W10833528		Pan, Crisper   (Replaces: 67002569)	10		Immediately	$ 139.95
17	67004061		Front, Crisper Pan	10	Appelez-nous	-
