SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts

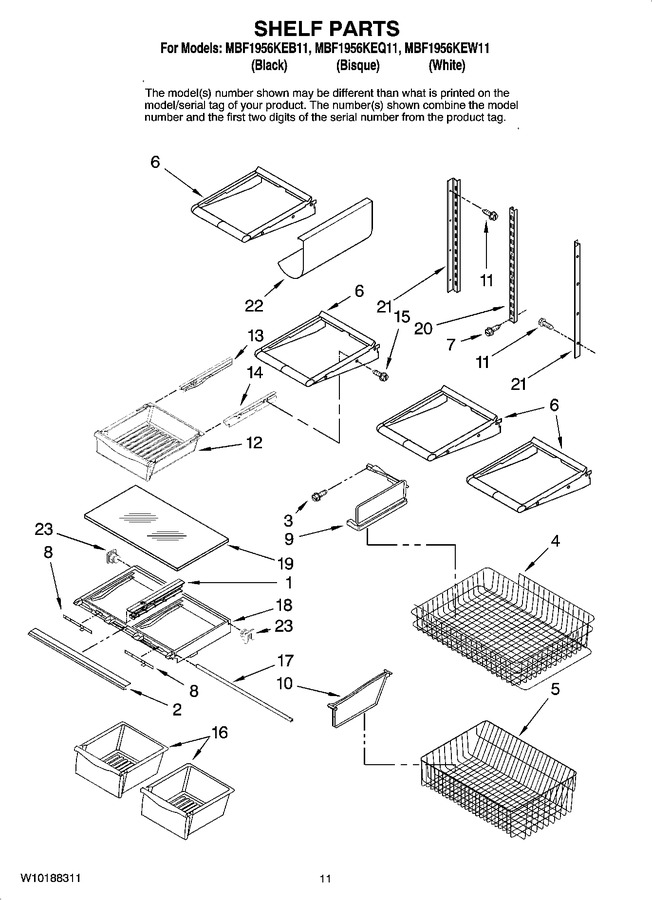

07 - Shelf Parts


08 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10671238		Rail, Center Crisper   (Replaces: 67001057)			Immediately	$ 118.46
2	67003879		Trim, Crisper		Appelez-nous	-
3	67006608		Screw		Appelez-nous	-
4	67004985		Basket, Freezer (upper)				$ 99.88
5	W10503182		Basket, Freezer (lower)   (Replaces: 67006023)				$ 241.97
6	W11402522		Shelf (4)   (Replaces: 67004062)				$ 203.51
7	W10709795		Screw   (Replaces: 67006360)				$ 13.79
8	WP67005864		Slide, Humidity Control   (Replaces: 67005864)			Immediately	$ 8.20
9	67004127		Divider, Basket (upper)				$ 10.10
10	67006644		Divider, Basket (lower)		Appelez-nous	-
11	67006425		Screw   (Replaces: 67006400)			Immediately	$ 7.30
12	WP67001308		Pan, Deli   (Replaces: 67001308)			Immediately	$ 138.10
13	WP67001054		Glide, Left   (Replaces: 67001054)			Immediately	$ 8.82
14	WP67001053		Glide, Right   (Replaces: 67001053)			Immediately	$ 9.24
15	W11233072		Screw, Glide (4)   (Replaces: 67006626)			Immediately	$ 14.72
16	W10833528		Pan, Crisper   (Replaces: 67002569)			Immediately	$ 139.95
17	WP12227302WD		Brace, Crisper   (Replaces: 67001155)				$ 111.60
18	WPW10671240		Frame, Crisper   (Replaces: 67001153)			Immediately	$ 138.10
19	WP67006877		Glass, Crisper Cover   (Replaces: 67006877)			Immediately	$ 209.75
20	67001073		Ladder, Center				$ 56.89
21	67001302		Ladder, Side		Appelez-nous	-
22	10448903		Rack, Bottle		Appelez-nous	-
23	WP12603701		Support, Crisper Frame   (Replaces: 12603701)				$ 10.83

    View Diagram in Separate Window       Print Part List
