SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

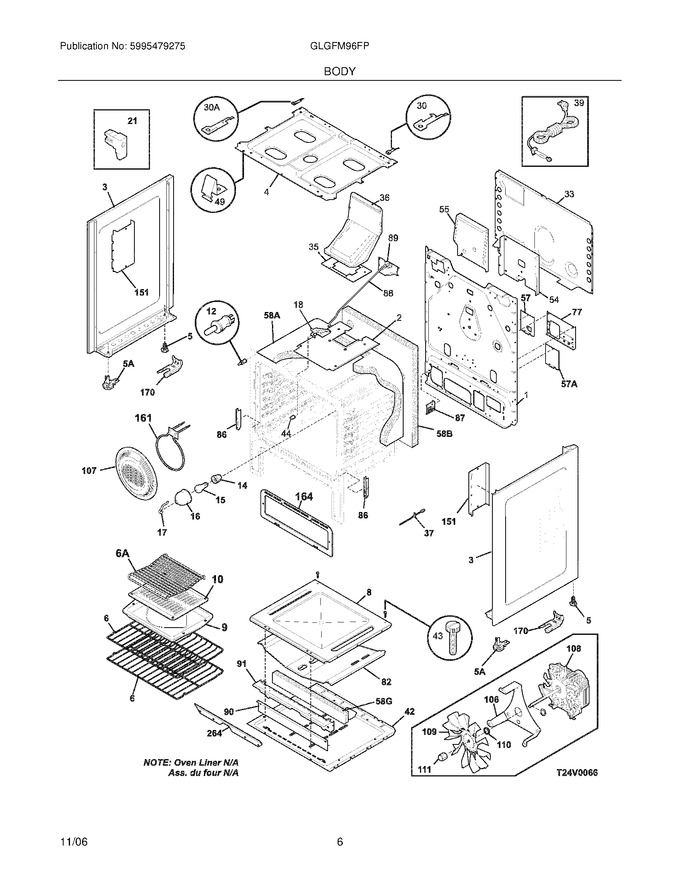

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401602		Back,main		Appelez-nous	-
2	316402201		Shield,oven Top		Appelez-nous	-
3	316400145		Panel,bodyside ,black ,lh   (Replaces: 316400119)			Immediately	$ 148.81
3	316400144		Panel,bodyside ,black ,rh   (Replaces: 316400118)			Immediately	$ 149.65
4	316201403		Burner Box				$ 106.73
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 30.55
6	316496201		Rack,oven   (Replaces: 316404501)			Immediately	$ 114.98
8	316400603		Panel,oven Bottom			Immediately	$ 207.29
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
12	316445500		Switch,oven Light ,door Frame			Immediately	$ 60.82
14	316116400		Receptacle,oven Light			Immediately	$ 62.33
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 19.07
17	316087500		Retainer,lens				$ 63.00
21	316408000		Clip,bodyside				$ 20.22
30	316217700		Bracket,hinge ,rh ,main Top				$ 13.42
33	316402500		Shield,rear Wall				$ 133.88
35	316542102		Gasket,flue   (Replaces: 316116600)				$ 13.48
36	316208901		Flue				$ 144.09
42	316400703		Shield,wool ,lower		Appelez-nous	-
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 11.03
44	316246501		Spacer,oven Door				$ 12.13
49	316234200		Clip,maintop Mtg ,(2)				$ 46.78
54	316404200		Shield,heat				$ 57.75
55	5304510473		Shield,flue   (Replaces: 316404800)				$ 25.99
57	316451100		Cover,access ,w/ Holes		Appelez-nous	-
77	316451200		Plate,mounting ,safety Valve		Appelez-nous	-
82	316400801		Shield,bake Burner				$ 182.85
86	316441300		Receptacle,hinge				$ 24.41
87	316451000		Bracket,harness ,mini Oven		Appelez-nous	-
88	316232702		Rod,auto Latch   (Replaces: 316232700)			Immediately	$ 14.32
90	316401100		Shield,main Front		Appelez-nous	-
91	316401000		Shield,front ,burner		Appelez-nous	-
106	316404100		Bracket,motor Mtg.				$ 70.78
107	316026701		Cover,fan				$ 454.32
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 32.34
110	316008401		Washer,flat   (Replaces: 316136500)				$ 12.60
111	316136600		Nut,fan Retainer			Immediately	$ 21.26
151	316404600		Shield,bodyside				$ 49.30
164	316450301		Trim,front ,mini Oven		Appelez-nous	-
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 14.32
170	316112500		Template,anti-tip				$ 3.94
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 21.01
264	316404700		Bracket,air Dam		Appelez-nous	-
30A	316217701		Bracket,hinge ,lh ,main Top				$ 13.00
57A	316451101		Cover,access ,w/o Holes		Appelez-nous	-
58A	316403700		Insulation,oven Wrapper				$ 337.84
58B	316403600		Insulation,oven Back				$ 125.75
58G	08067973		Insulation, Main Front				$ 57.49
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316407201)			Immediately	$ 16.76
6A	318219500		Rack,broiler Pan		Appelez-nous	-
F108	5304467897		Motor,convection   (Replaces: 316415700)				$ 257.67
F161	316211604		Element,convection Fan ,200 W				$ 450.50
F18	316405800		Latch Assembly,oven Door			Immediately	$ 63.04
F37	316490000		Probe,oven Temp			Immediately	$ 64.78
F39	5304534000		Cord,electric Power   (Replaces: 3131425)			Immediately	$ 37.08
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 58.16
NI	316418901		Screw,trilobe ,10-32 X 5/16``				$ 15.75
NI	316437100		Brace,oven Top				$ 35.44
NI	316432800		Clip,wire		Appelez-nous	-
NI	316416650		Harness,wiring ,main		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021132		Screw,8-18 X 11/16 ,black				$ 14.32
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 14.96
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 11.13
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 14.96

    View Diagram in Separate Window       Print Part List
