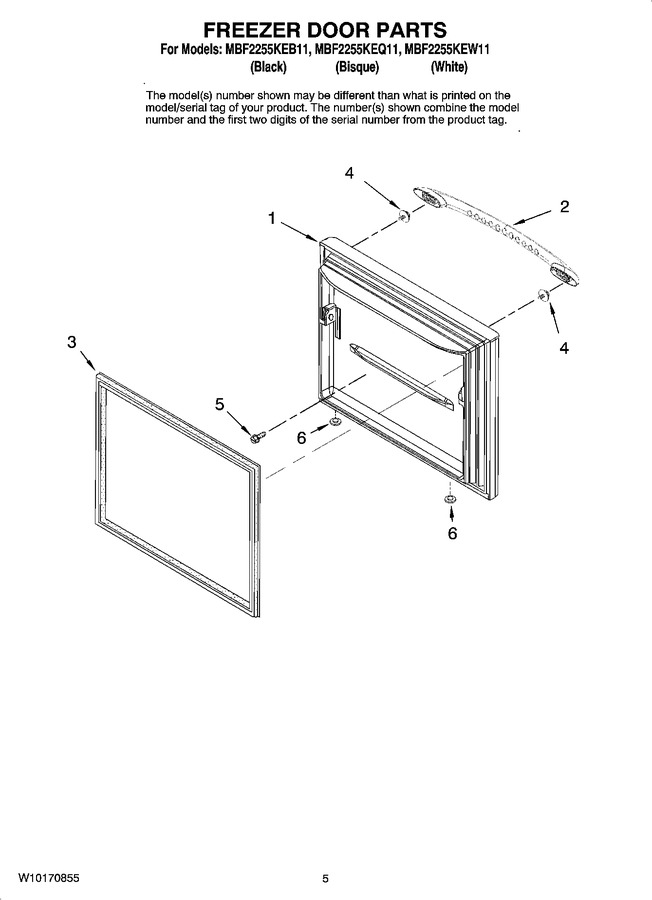

03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10170997		Door, Freezer (white)		Appelez-nous	-
1	W10170998		Door, Freezer (black)		Appelez-nous	-
1	W10170999		Door, Freezer (bisque)		Appelez-nous	-
2	WPW10119651		Handle, Door (white)   (Replaces: W10119651)				$ 210.08
2	W10119653		Handle, Door (black)				$ 76.38
2	W10119652		Handle, Door (bisque)		Appelez-nous	-
3	W10443315		Gasket, Door (white)   (Replaces: W10130894)				$ 193.98
3	WPW10436250		Gasket, Door (black)   (Replaces: W10130587)			Immediately	$ 365.39
4	WP12992902		Screw, Handle   (Replaces: 12992902)				$ 11.91
5	12991101		Screw (8)   (Replaces: 67006408)				$ 13.47
6	10712401		Plug, Button (2) (white)				$ 7.79
6	67004838		Plug, Button (2) (black)				$ 11.21
