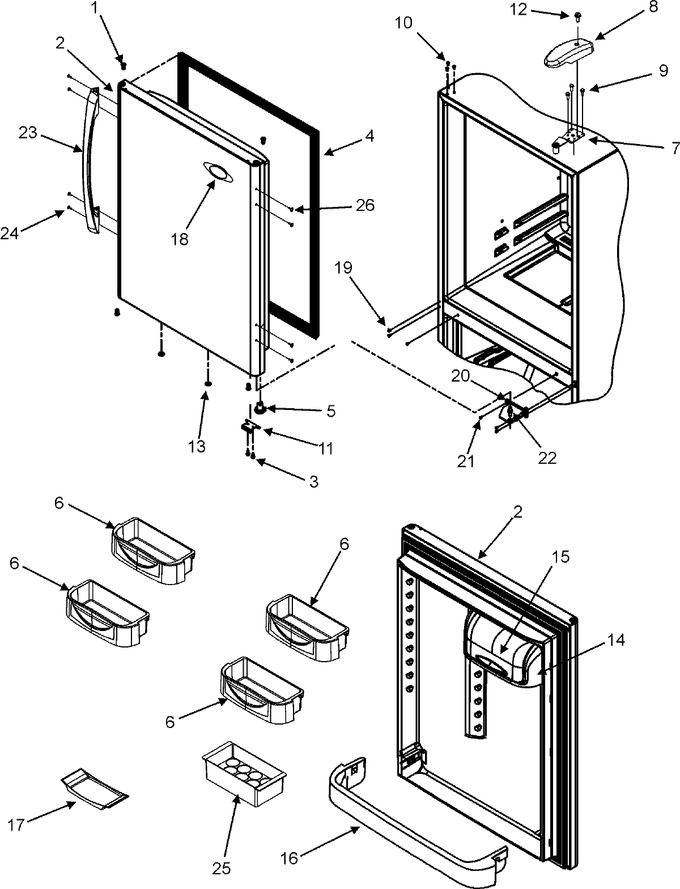

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67004977 | Bushing, Door (wht) (Replaces: 67004977) | 10 |
|
$ 7.81 | ||||
| 2 | 67004361 | Door Assy., Ref. Foam (bsq) | 10 |
|
- | ||||
| 3 | WP98165 | Screw (Replaces: 67006287) | 10 |
|
$ 8.00 | ||||
| 4 | W10443313 | Gasket, Ref Door (wht) (Replaces: 67003552) | 10 |
|
$ 343.82 | ||||
| 5 | WP67003638 | Closure, Door (wht) (Replaces: 67003638) | 10 |
|
Immediately | $ 7.76 | |||
| 6 | 67004040 | Bucket, Ref Dr (med) | 10 |
|
$ 91.42 | ||||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 44.89 | |||
| 8 | 67001013 | Cover, Top Hinge (bsq) | 10 |
|
- | ||||
| 9 | WP489349 | Screw (Replaces: 67006303) | 10 |
|
Immediately | $ 7.88 | |||
| 10 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) | 10 |
|
Immediately | $ 5.98 | |||
| 11 | 67003781 | Stop, Door (bsq) | 10 |
|
$ 79.16 | ||||
| 12 | WP8281196 | Screw (Replaces: 67006521) | 10 |
|
Immediately | $ 7.19 | |||
| 13 | 10712401 | Plug, Vent (wht) | 10 |
|
$ 7.79 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 83.82 | |||
| 15 | WP67003637 | Door, Dairy (Replaces: 67003637) | 10 |
|
Immediately | $ 78.73 | |||
| 16 | 67001748 | Retainer, Door | 10 |
|
- | ||||
| 17 | 67004412 | Tray, Butter | 10 |
|
- | ||||
| 18 | 2324038 | Nameplate (Replaces: 67006439) | 10 |
|
$ 68.18 | ||||
| 19 | W11573362 | Screw (Replaces: 67006380) | 10 |
|
$ 14.02 | ||||
| 20 | W11689473 | Hinge, Center (wht) (Replaces: 67001168) | 10 |
|
$ 66.47 | ||||
| 21 | W11573362 | Screw (Replaces: 67006380) | 10 |
|
$ 14.02 | ||||
| 22 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) | 10 |
|
$ 7.93 | ||||
| 23 | 67005146 | Handle Assy., Ref. Door (bsq) | 10 |
|
- | ||||
| 24 | 67004707 | Screw, Hi Torque (bsq) | 10 |
|
$ 18.30 | ||||
| 25 | 67215-2 | Tray, Egg | 10 |
|
- | ||||
| 26 | 12246604 | Plug, Handle Hole (bsq) | 10 |
|
- |
