SELECT A DIAGRAM
New Model Search:

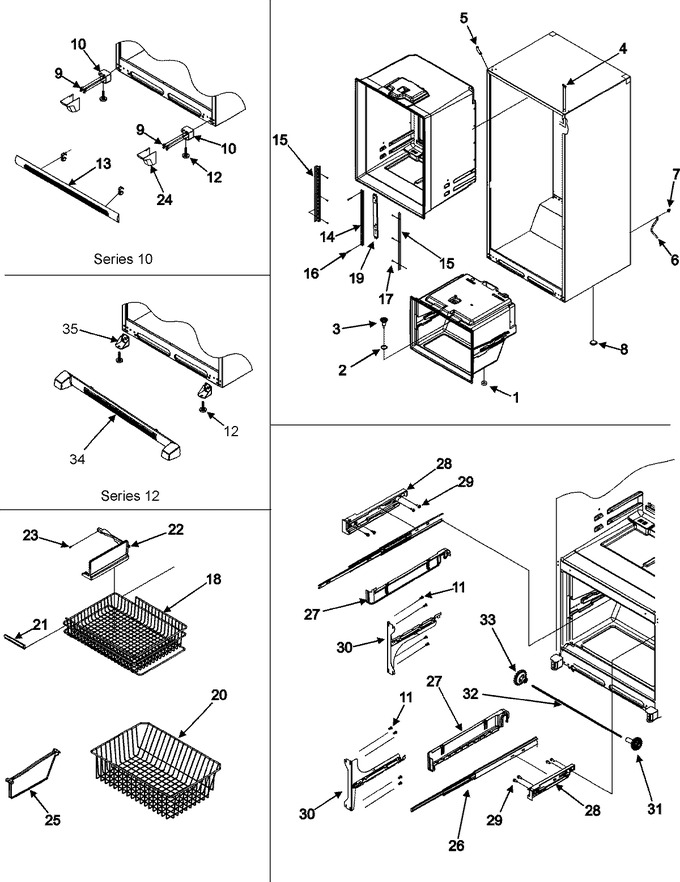

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) | 10 |
|
$ 7.78 | ||||
| 2 | WPM0500703 | Seal, O Ring (Replaces: M0500703) | 10 |
|
$ 11.47 | ||||
| 3 | W10815413 | Funnel, Drain (Replaces: D7753903) | 10 |
|
Immediately | $ 51.50 | |||
| 4 | A4539607 | Pop Rivet | 10 |
|
- | ||||
| 5 | 67003486 | Cover, Corner (bsq) | 10 |
|
- | ||||
| 6 | 67001066 | Tube, Drain | 10 |
|
$ 55.82 | ||||
| 7 | 67001067 | Clip, Drain Tube | 10 |
|
$ 9.66 | ||||
| 8 | A3076901 | Plug-button | 10 |
|
$ 5.70 | ||||
| 9 | 67003858 | Screw, Bottom Hinge | 10 |
|
- | ||||
| 10 | 67001239 | Hinge, Bottom E-ct (wht) | 10 |
|
- | ||||
| 11 | WP98165 | Screw, Sm (Replaces: M0211018) | 10 |
|
$ 8.57 | ||||
| 12 | W11177593 | Brake, Foot (Replaces: 10354001) | 10 |
|
$ 12.18 | ||||
| 13 | 12627302 | Clip, Toe Grille | 10 |
|
$ 5.84 | ||||
| 13 | 67003845 | Toe Grille Assy (bsq) | 10 |
|
- | ||||
| 14 | 67004439 | Ladder, Shelf (ctr) | 10 |
|
- | ||||
| 15 | 67004441 | Ladder, Shelf (lt) | 10 |
|
- | ||||
| 15 | 67004440 | Ladder, Shelf (rt) | 10 |
|
- | ||||
| 16 | W10709795 | Screw (Replaces: M0231425) | 10 |
|
$ 13.79 | ||||
| 17 | 67006425 | Screw, Sm (Replaces: M0238642) | 10 |
|
Immediately | $ 7.30 | |||
| 18 | 67002918 | Basket, Upper | 10 |
|
- | ||||
| 19 | 67003721 | Adapter, Ctr Ladder | 10 |
|
- | ||||
| 19 | WP489474 | Screw 1`` (Replaces: M0211021) | 10 |
|
Immediately | $ 8.55 | |||
| 20 | 67004260 | Basket, Freezer (lwr) | 10 |
|
- | ||||
| 21 | 10508506 | Handle, Basket/shelf | 10 |
|
- | ||||
| 22 | 67001723 | Divider, Basket (upper) | 10 |
|
- | ||||
| 23 | 67001310 | Screw | 10 |
|
- | ||||
| 24 | 12561901C | Cover, Lwr Hinge (bsq) | 10 |
|
- | ||||
| 25 | 67004064 | Divider, Basket (lwr) | 10 |
|
- | ||||
| 26 | 67004065 | Slide, Drawer | 10 |
|
- | ||||
| 27 | WPW10280613 | Cradle, Basket (rt) (Replaces: 67004015) | 10 |
|
$ 92.15 | ||||
| 27 | WPW10280608 | Cradle, Basket (lt) (Replaces: 67004014) | 10 |
|
$ 92.15 | ||||
| 28 | 67004011 | Adapter, Side (rt) | 10 |
|
- | ||||
| 28 | 67004010 | Adapter, Side (lt) | 10 |
|
- | ||||
| 29 | WP489474 | Screw 1`` (Replaces: M0211021) | 10 |
|
Immediately | $ 8.55 | |||
| 30 | 67004013 | Bracket, Drawer Slide (rt) | 10 |
|
- | ||||
| 30 | 67004012 | Bracket, Drawer Slide (lt) | 10 |
|
- | ||||
| 31 | 12002497 | Gear (lt) (Replaces: 67004066) | 10 |
|
Immediately | $ 22.51 | |||
| 32 | W11715937 | Shaft, Rack (Replaces: 67004261) | 10 |
|
$ 68.69 | ||||
| 33 | 12002497 | Gear (rt) (Replaces: 67004016) | 10 |
|
Immediately | $ 22.51 |
