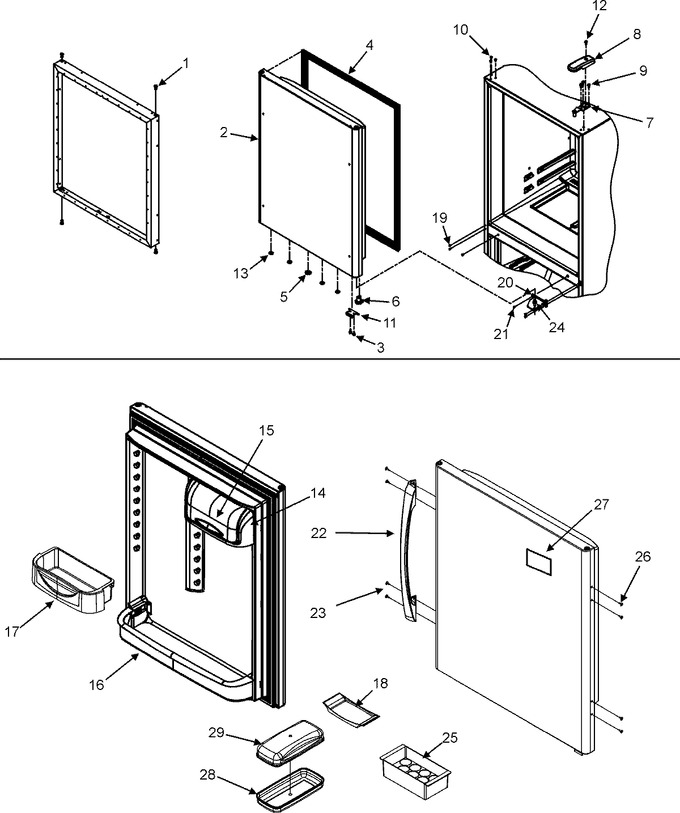

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67004977 | Bushing, Door (wht) (Replaces: 67004977) | 10 |
|
$ 8.20 | ||||
| 2 | 67004363 | Door Assy., Ref. Foam (wht) | 10 |
|
- | ||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) | 10 |
|
Immediately | $ 8.20 | |||
| 4 | W10443313 | Gasket, Ref Door (wht) (Replaces: 67003552) | 10 |
|
$ 361.01 | ||||
| 5 | A3080002 | Plug, Button (wht) | 10 |
|
- | ||||
| 6 | WP67003638 | Closure, Door (wht) (Replaces: 67003638) | 10 |
|
Immediately | $ 8.15 | |||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 47.13 | |||
| 8 | 67001014 | Cover, Top Hinge (wht) | 10 |
|
$ 22.34 | ||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) | 10 |
|
$ 10.58 | ||||
| 10 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) | 10 |
|
Immediately | $ 5.98 | |||
| 11 | 12968202W | Stop, Door (wht) (Replaces: 67003779) | 10 |
|
$ 69.29 | ||||
| 12 | WPW10348409 | Screw, Mounting (Replaces: M0211533) | 10 |
|
Immediately | $ 8.20 | |||
| 13 | 10712401 | Plug, Vent (wht) | 10 |
|
$ 7.79 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 88.01 | |||
| 15 | WP67003637 | Door, Dairy (Replaces: 67003637) | 10 |
|
Immediately | $ 82.67 | |||
| 16 | 67001748 | Retainer, Door | 10 |
|
- | ||||
| 17 | 67004040 | Bucket, Ref Dr (med) | 10 |
|
$ 95.99 | ||||
| 18 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 19 | WP489349 | Screw, Tf (Replaces: M0239730) | 10 |
|
Immediately | $ 8.43 | |||
| 20 | W11689473 | Hinge, Center (wht) (Replaces: 67001168) | 10 |
|
$ 69.79 | ||||
| 21 | W11573362 | Screw, T. F. (Replaces: M0226233) | 10 |
|
$ 14.72 | ||||
| 22 | 67005538 | Handle Assy., Ref. Door (wht) | 11 |
|
- | ||||
| 22 | 67005452 | Handle Assy., Ref Door (wht) | 10 |
|
- | ||||
| 22 | 67005538 | Handle Assy., Ref. Door (wht) | 10 |
|
- | ||||
| 23 | 67004708 | Screw, Hi Torque (wht) | 10 |
|
- | ||||
| 23 | 67006668 | Screw, Hi Torque | 12 |
|
$ 12.83 | ||||
| 24 | WP67006642 | Pin, Center Hinge (Replaces: 67002734) | 10 |
|
$ 8.78 | ||||
| 25 | 67215-2 | Tray, Egg | 10 |
|
- | ||||
| 26 | WP67001130 | Plug, Handle Hole (wht) (Replaces: 12246601) | 10 |
|
Immediately | $ 5.98 | |||
| 27 | 2324038 | Nameplate (Replaces: 67003877) | 10 |
|
$ 71.59 | ||||
| 28 | 67004404 | Tray, Butter | 10 |
|
- | ||||
| 29 | 67004405 | Lid, Butter Tray | 10 |
|
- |
