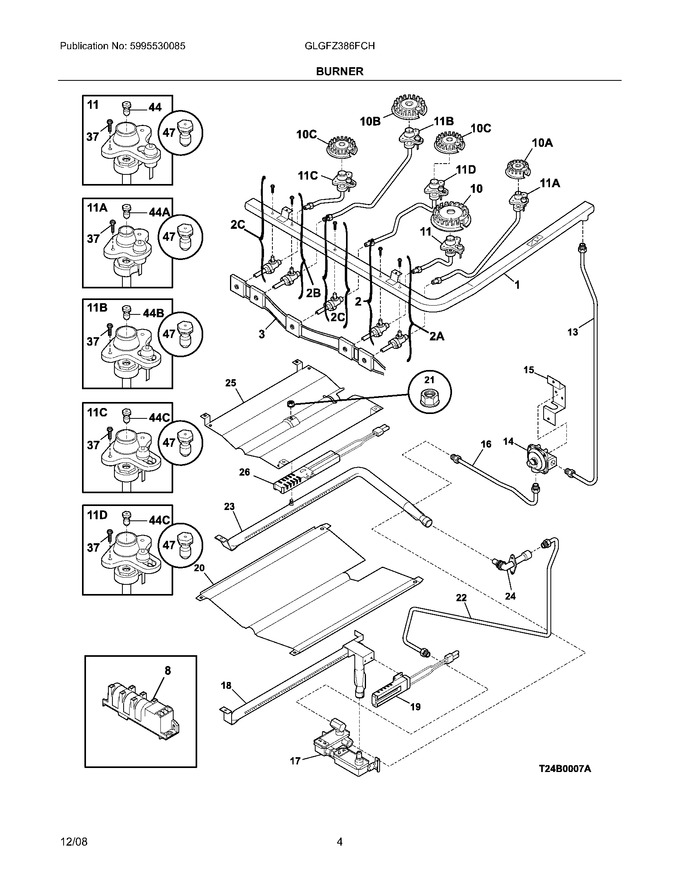

SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 808608804 | Module,spark (Replaces: 318079001) |
|
Immediately | $ 84.51 | ||||
| 11 | 316536621 | Ignitor/orifice Assy .,,top Burner ,right Front,16k ,w/tube & Holder (Replaces: 316449602) |
|
$ 189.00 | |||||
| 15 | 316091600 | Bracket-regulator |
|
$ 81.73 | |||||
| 20 | 5304519024 | Baffle,oven Burner (Replaces: 316401401) |
|
Immediately | $ 89.32 | ||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.46 | |||||
| 25 | 316401301 | Baffle,broil Burner |
|
$ 173.57 | |||||
| 37 | 316240600 | Screw,assy Mtg ,(8) ,ignitor/orifice |
|
Immediately | $ 13.48 | ||||
| 44 | 316527508 | Orifice,top Burner ,16k |
|
$ 20.48 | |||||
| 47 | GRLP3 | Lp Conversion Kit,w/instructions |
|
$ 63.46 | |||||
| 10B | 316438000 | Burner,sealed ,12k |
|
$ 75.34 | |||||
| 11C | 316536602 | Ignitor/orifice Assy.,,top Burner ,left Front,9.5k ,w/tube & Holder (Replaces: 316449302) |
|
$ 147.36 | |||||
| 11D | 316449304 | Ignitor/orifice Assy.,,top Burner ,center,9.5k ,w/tube & Holder |
|
- | |||||
| 2A | 316536003 | Valve-top Burner,5k |
|
$ 91.00 | |||||
| 2B | 316536001 | Valve-top Burner,12k |
|
$ 92.69 | |||||
| 44A | 316527504 | Orifice,top Burner ,5k |
|
$ 25.20 | |||||
| 44B | 316527502 | Orifice,top Burner ,12k |
|
$ 25.20 | |||||
| 44C | 316527500 | Orifice,top Burner ,9.5k |
|
$ 23.78 | |||||
| F1 | 316551202 | Manifold,pipe |
|
$ 132.77 | |||||
| F10 | 316438400 | Burner,sealed ,16/17k |
|
Immediately | $ 92.69 | ||||
| F10A | 316438200 | Burner,sealed ,5k |
|
Immediately | $ 63.00 | ||||
| F10C | 316558300 | Burner,sealed ,9.5k (Replaces: 316527400) |
|
Immediately | $ 58.28 | ||||
| F11A | 316536610 | Ignitor/orifice Assy.,,top Burner ,right Rear,5k ,w/holder ,tube (Replaces: 316449500) |
|
Immediately | $ 102.64 | ||||
| F11B | 316536612 | Ignitor/orifice Assy.,,top Burner ,lh Rear,12k ,w/holder-tube (Replaces: 316449400) |
|
$ 129.47 | |||||
| F13 | 316405300 | Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings |
|
- | |||||
| F14 | 5304521339 | Regulator,pressure (Replaces: 316091706) |
|
Immediately | $ 117.13 | ||||
| F16 | 5304507348 | Tube-valve To Rgltr,3/8 (Replaces: 316431000) |
|
Immediately | $ 52.25 | ||||
| F17 | 316404901 | Valve,safety |
|
$ 406.35 | |||||
| F18 | 316404400 | Burner,oven |
|
$ 121.22 | |||||
| F19 | 5304534663 | Ignitor,oven Burner (Replaces: 316489400) |
|
Immediately | $ 119.86 | ||||
| F2 | 5303935233 | Valve,17k Burner ,w/mtg Screw |
|
$ 64.24 | |||||
| F22 | 5304507768 | Tube-valve To Mixer (Replaces: 316537100) |
|
$ 55.62 | |||||
| F23 | 316404300 | Burner,broiler |
|
$ 235.98 | |||||
| F24 | 5304516894 | Elbow,mixer (Replaces: 316409700) |
|
$ 96.90 | |||||
| F26 | 316489401 | Ignitor,burner |
|
$ 207.29 | |||||
| F2C | 316536000 | Valve-top Burner,9.5k |
|
Immediately | $ 80.05 | ||||
| F3 | 316219017 | Wiring Harness,w/igntr Switch |
|
$ 84.37 | |||||
| FNI | 316253702 | Wiring Harness,ignitor Module |
|
$ 113.30 | |||||
| FNI | 316064103 | Wire,ground Assembly |
|
- | |||||
| NI | 5303271648 | Screw,wafer Hd Sq Dr ,8-18ab X 0.5 |
|
Immediately | $ 14.96 | ||||
| NI | 316498100 | Shield,wire ,safety Valve |
|
$ 16.85 | |||||
| NI | 316401500 | Cover,broil Ignitor |
|
$ 14.32 | |||||
| NI | 316021104 | Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt |
|
$ 8.66 | |||||
| NI | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 15.75 | ||||
| NI | 316248105 | Instructions,lp Kit |
|
- | |||||
| NI | 316001017 | Screw,ground Wire (Replaces: 316001003) |
|
$ 3.37 |
