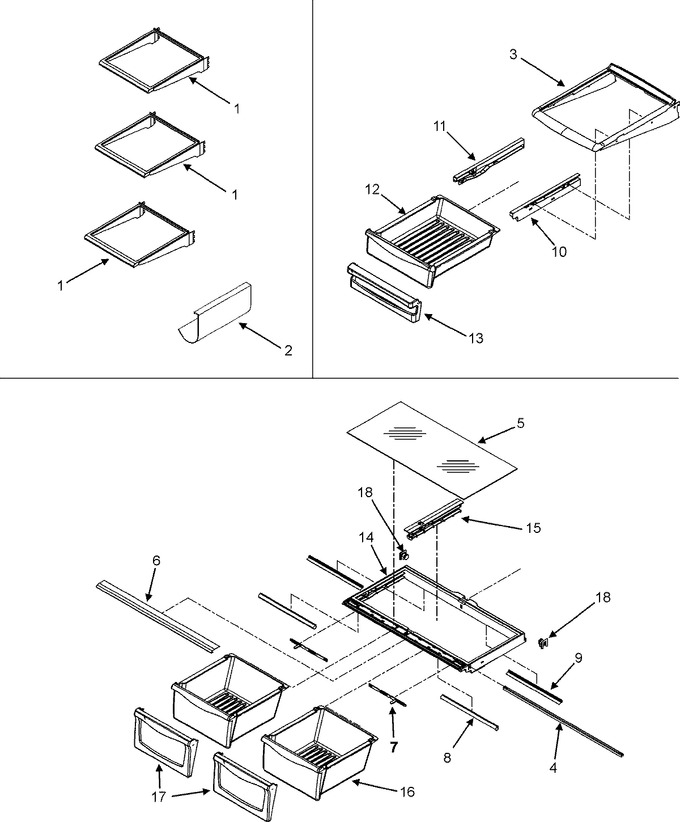

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004434		Shelf, Glide	10	Appelez-nous	-
2	10448903		Rack, Bottle	10	Appelez-nous	-
3	67004435		Shelf, Stationary	10	Appelez-nous	-
4	WP12642303WD		Brace, Crisper E-ct   (Replaces: 67002748)	10			$ 112.26
5	WP67006704		Glass, Crisper   (Replaces: 67003852)	10			$ 212.77
6	WPW10231345		Extr, Front Crisper   (Replaces: 67004510)	10			$ 137.67
7	WP67005864		Slide, Humidity Control   (Replaces: Y67001287)	10		Immediately	$ 8.20
8	WP67003417		Seal, Front Crisper   (Replaces: 67003417)	10			$ 9.70
9	WP67002513		Seal, Rear Crisper   (Replaces: 67002513)	10			$ 7.98
10	WP67001053		Glide (rt)   (Replaces: 67001053)	10		Immediately	$ 9.24
10	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.72
11	WP67001054		Glide (lt)   (Replaces: 67001054)	10		Immediately	$ 8.82
11	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.72
12	67004512		Pan, Deli	10			$ 61.71
13	67004513		Front, Deli Pan	10	Appelez-nous	-
14	WP67003854		Frame, Crisper   (Replaces: 67003854)	10		Immediately	$ 227.55
15	WPW10326469		Rail, Center Crisper   (Replaces: 67004514)	10		Immediately	$ 33.37
16	WP67004515		Pan, Crisper   (Replaces: 67004515)	10		Immediately	$ 176.72
17	WP67005923		Front, Crisper Pan   (Replaces: 67004516)	10			$ 79.13
18	WP12603701		Support, Crisper Frame   (Replaces: 12603701)	10			$ 10.83
