SELECT A DIAGRAM
01 - Oven, Literature

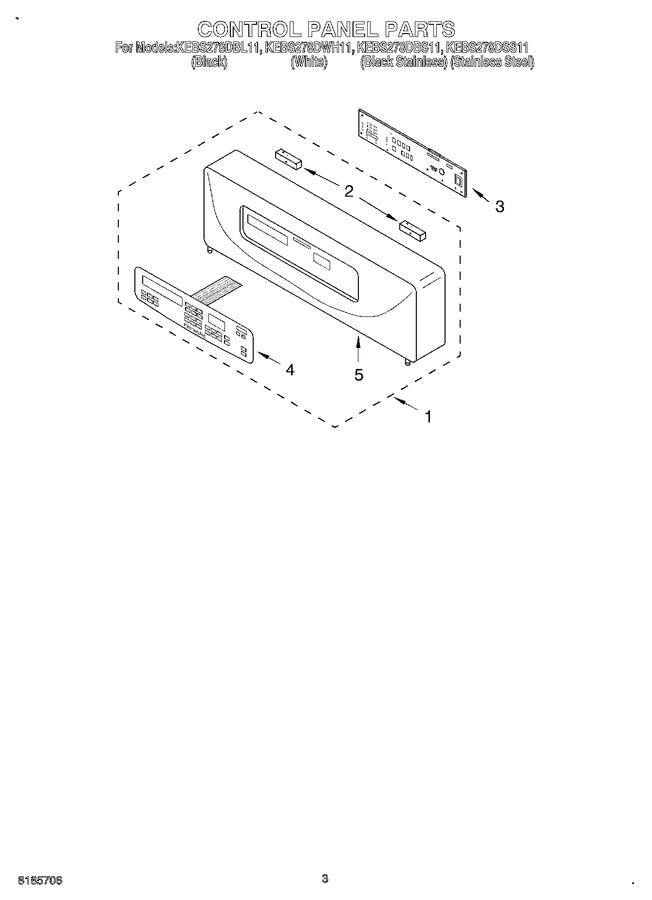

02 - Control Panel
03 - Oven Door
04 - Internal Oven
05 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8300380 | Control Panel Assy. W/membrane Switch (black & Bs Models) |
|
- | |||||
| 1 | 8300379 | Control Panel Assy. W/membrane Switch (white Model N/a Stainless Steel) |
|
- | |||||
| 2 | 4451033 | Gasket, Control Panel |
|
- | |||||
| 3 | 4453165 | Microcomputer |
|
- | |||||
| 3 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 4 | 4452376 | Membrane Switch Stainless Steel Model |
|
- | |||||
| 5 | 4451790 | Panel, Control Stainless Steel Model |
|
- |
