SELECT A DIAGRAM
01 - Oven

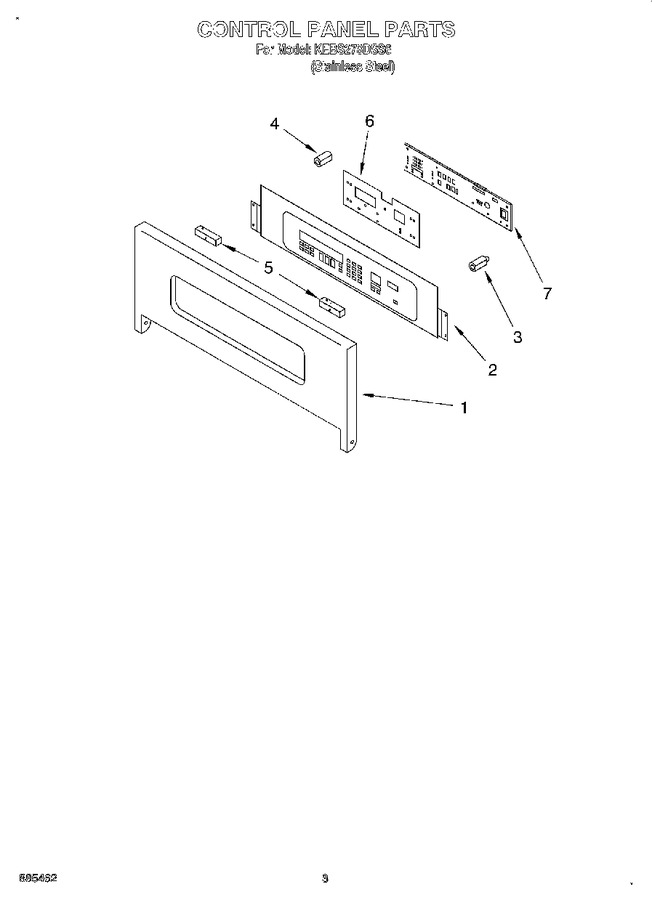

02 - Control Panel, Literature
03 - Oven Door
04 - Internal Oven
05 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451790 | Control Panel Assy. |
|
- | |||||
| 2 | 4452322 | Membrane Switch |
|
- | |||||
| 3 | 4452248 | Insulation, Board |
|
- | |||||
| 4 | 4159465 | Screw |
|
- | |||||
| 4 | 4452249 | Insulation, Board Support |
|
- | |||||
| 5 | 4452260 | Spacer, Foam |
|
- | |||||
| 6 | 4452345 | Insulator, Dialectric |
|
- | |||||
| 7 | 4448871CP | Microcomputer (Replaces: 4448871) |
|
- | |||||
| 7 | 3400406 | Screw |
|
- | |||||
| LIT4450410 | Installation Instructions |
|
- | ||||||
| LIT3191638 | Safer Cooking Tips |
|
- | ||||||
| LIT4449264 | Easy Set Guide |
|
- | ||||||
| LIT4452026 | Tech Sheet (oven) |
|
- | ||||||
| LIT4449066 | Cookbook, T/c Oven |
|
- | ||||||
| LIT4450571 | Use & Care Guide (oven) |
|
- |
