SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts

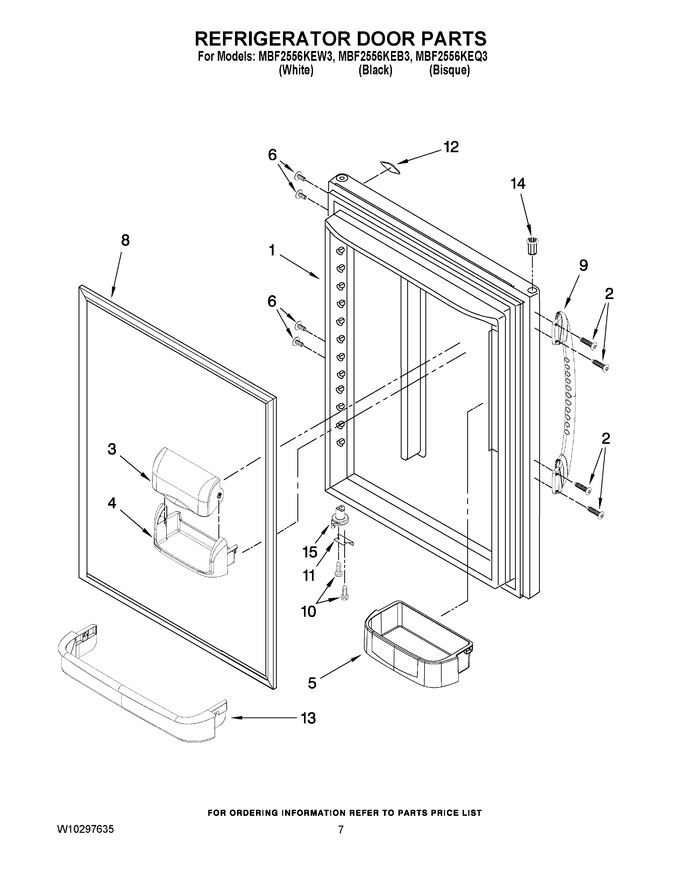

05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658531BQ		Door, Refrigerator (black)		Appelez-nous	-
1	12658531CQ		Door, Refrigerator (bisque)		Appelez-nous	-
1	12658531WQ		Door, Refrigerator (white)		Appelez-nous	-
2	M1261616		Screw (4) (bisque)		Appelez-nous	-
2	12992802		Screw (4) (white)		Appelez-nous	-
2	67006806		Screw (4) (black)   (Replaces: 12992803)				$ 14.02
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	67004040		Bucket, Medium (4)   (Replaces: 12801902)				$ 95.99
6	12991103		Screw (4) (white)				$ 12.03
6	98008169		Screw (4) (bisque)   (Replaces: 12991104)		Appelez-nous	-
6	12991105		Screw (4) (black)		Appelez-nous	-
8	W10164038		Gasket, Door (white)				$ 245.81
8	W10164039		Gasket, Door (black)				$ 343.59
9	WP12781004W		Handle, Door (white)   (Replaces: 12781004W)				$ 183.57
9	12781004Q		Handle, Door (bisque)		Appelez-nous	-
9	12781004B		Handle, Door (black)				$ 89.40
10	WP98165		Screw   (Replaces: 12990504)				$ 8.57
11	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 69.29
11	67003781		Stop, Door (bisque)   (Replaces: 10447113)				$ 83.12
11	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.75
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
13	12690503		Retainer, Ref Door				$ 48.08
14	WP67004977		Bushing (4) (white)   (Replaces: 10961006W)				$ 8.20
14	67004978		Bushing (4) (black)   (Replaces: 10961006B)				$ 22.10
15	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 90.32
15	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 8.15

    View Diagram in Separate Window       Print Part List
