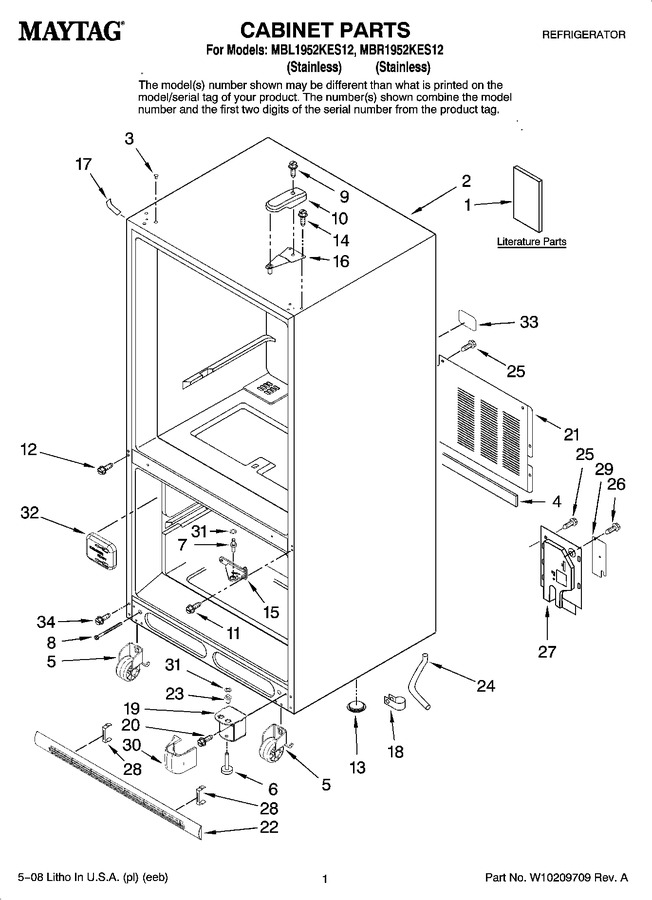

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12863065 | Energy Guide |
|
- | |||||
| 1 | W10169671 | Tech Sheet |
|
- | |||||
| 1 | W10137641 | Use & Care Guide |
|
- | |||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 67006118 | Roller Assy. (2) |
|
- | |||||
| 6 | W11177593 | Foot Brake (Replaces: 67003868) |
|
$ 12.18 | |||||
| 7 | WP67006744 | Pin, Center Hinge (Replaces: 67006744) |
|
$ 8.68 | |||||
| 8 | 71003131 | Bolt, Adjusting (front Roller) (Replaces: 67006611) |
|
Immediately | $ 7.08 | ||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.55 | ||||
| 10 | 67001012 | Cover Hinge (black) |
|
$ 49.71 | |||||
| 11 | W11573362 | Screw (3) (Replaces: 67006380) |
|
$ 14.72 | |||||
| 12 | WP489349 | Screw (Replaces: 67005822) |
|
Immediately | $ 8.43 | ||||
| 13 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 67006303) |
|
Immediately | $ 8.43 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 67007043) |
|
$ 167.35 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566604ED) |
|
Immediately | $ 47.13 | ||||
| 17 | 67003485 | Cover, Corner (black) |
|
Immediately | $ 22.14 | ||||
| 18 | 67001067 | Clip, Drain |
|
$ 9.66 | |||||
| 19 | 67001068 | Hinge, Bottom (black) |
|
- | |||||
| 20 | 67006564 | Screw (4) |
|
Immediately | $ 8.15 | ||||
| 21 | 67006101 | Cover, Unit |
|
$ 76.68 | |||||
| 22 | 67003843 | Grille, Toe (includes Clips) (black) |
|
$ 51.18 | |||||
| 23 | 67007018 | Pin, Bottom Hinge |
|
Immediately | $ 8.62 | ||||
| 24 | 67001066 | Tube, Drain |
|
$ 55.82 | |||||
| 25 | 67006425 | Screw |
|
Immediately | $ 7.30 | ||||
| 26 | WP489128 | Screw (Replaces: 67006662) |
|
$ 11.40 | |||||
| 27 | 67001173 | Cover, Water Valve |
|
- | |||||
| 28 | 12627302 | Clip, Grille |
|
$ 5.84 | |||||
| 29 | 12479901 | Plate, Cover |
|
- | |||||
| 30 | 12561901B | Cover, Lower Hinge (black) |
|
$ 11.62 | |||||
| 31 | WPM0274057 | Shim (Replaces: M0274057) |
|
Immediately | $ 8.40 | ||||
| 32 | WP67001098 | Cover, Fill Tube (Replaces: 67001098) |
|
$ 8.43 | |||||
| 33 | W11685757 | Label, Fill Tube (Replaces: 67005064) |
|
$ 7.41 | |||||
| 34 | WP67006715 | Screw (2) (Replaces: 67006715) |
|
$ 7.55 |
