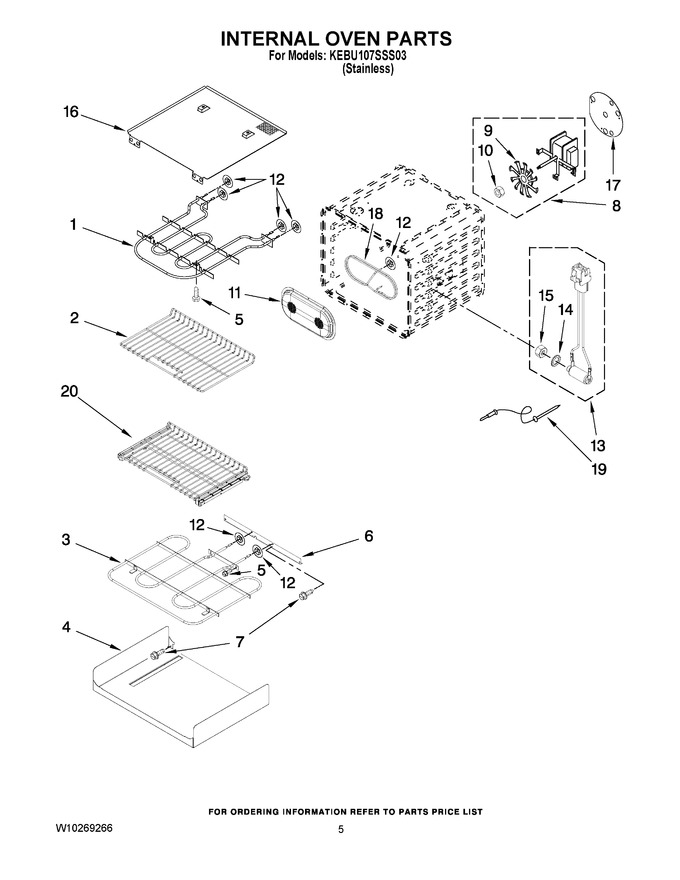

04 - Internal Oven Parts
05 - Top Venting Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9760774 | Element, Broil (Replaces: 9760774) |
|
Immediately | $ 229.00 | ||||
| 2 | W11550107 | Rack, Oven (Replaces: 8303841) |
|
$ 117.11 | |||||
| 3 | WPW10207398 | Element, Bake (Replaces: 9760768) |
|
Immediately | $ 133.00 | ||||
| 4 | 4455037 | Tray, Bake |
|
$ 73.11 | |||||
| 5 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 6 | 4450039 | Cover, Bake Tray |
|
$ 92.11 | |||||
| 7 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 8 | W10794022 | Motor, Convection Fan (Replaces: W10116228) |
|
Immediately | $ 214.63 | ||||
| 9 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 10 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 21.78 | |||||
| 11 | W10141211 | Cover, Fan |
|
$ 108.09 | |||||
| 12 | WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 8.36 | ||||
| 13 | W10150011 | Jack, Meat Probe |
|
$ 190.68 | |||||
| 14 | WP9755547 | Lockwasher (Replaces: 9755547) |
|
$ 6.41 | |||||
| 15 | WP9755546 | Locknut (Replaces: 9755546) |
|
$ 7.30 | |||||
| 16 | 8304602 | Shield, Broil |
|
$ 44.42 | |||||
| 17 | W10339476 | Plate, Mounting Convection Fan (Replaces: W10153105) |
|
$ 80.70 | |||||
| 18 | W10116434 | Element, Convection |
|
$ 342.58 | |||||
| 19 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 20 | W11186364 | Oven Rack (sliding) (Replaces: W10208155) |
|
$ 318.55 |
