01 - Oven Parts

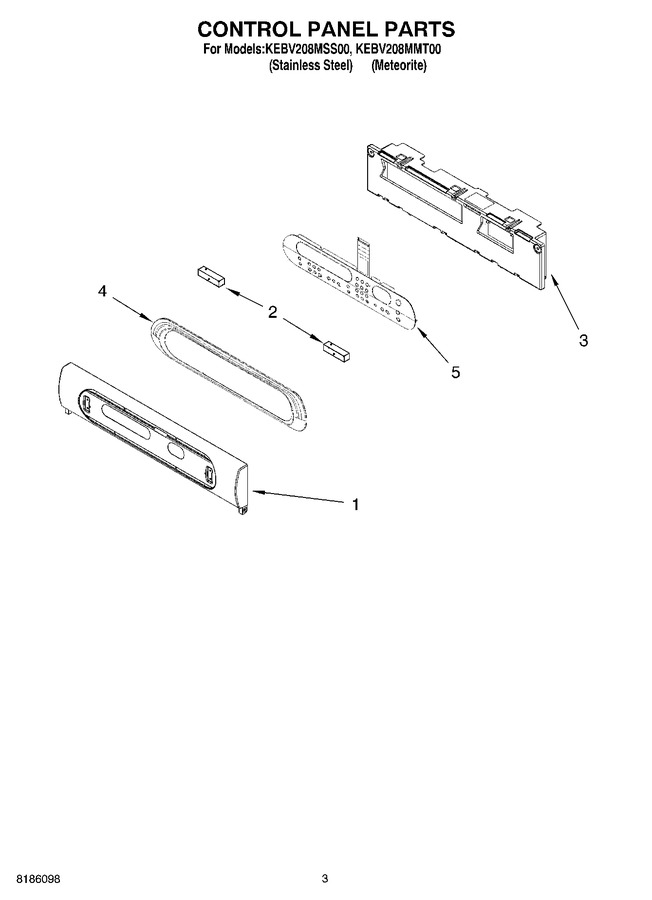

02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8301664		Panel, Control (meteorite)		Appelez-nous	-
1	8301562		Panel, Control (stainless Steel)		Appelez-nous	-
1	WP3400892		Panel, Control (screw)   (Replaces: 3400892)				$ 8.24
2	4452260		Spacer, Foam		Appelez-nous	-
3	8301890		Assy, Control		Appelez-nous	-
3	8301796		Bracket		Appelez-nous	-
3	8301848		Sister Board, Latch				$ 184.23
3	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
3	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
4	8301667		Frame, Control Pnl		Appelez-nous	-
5	8301994		Assy, Membrane (meteorite)		Appelez-nous	-
5	8301889		Assy, Membrane (stainless Steel)				$ 188.96
