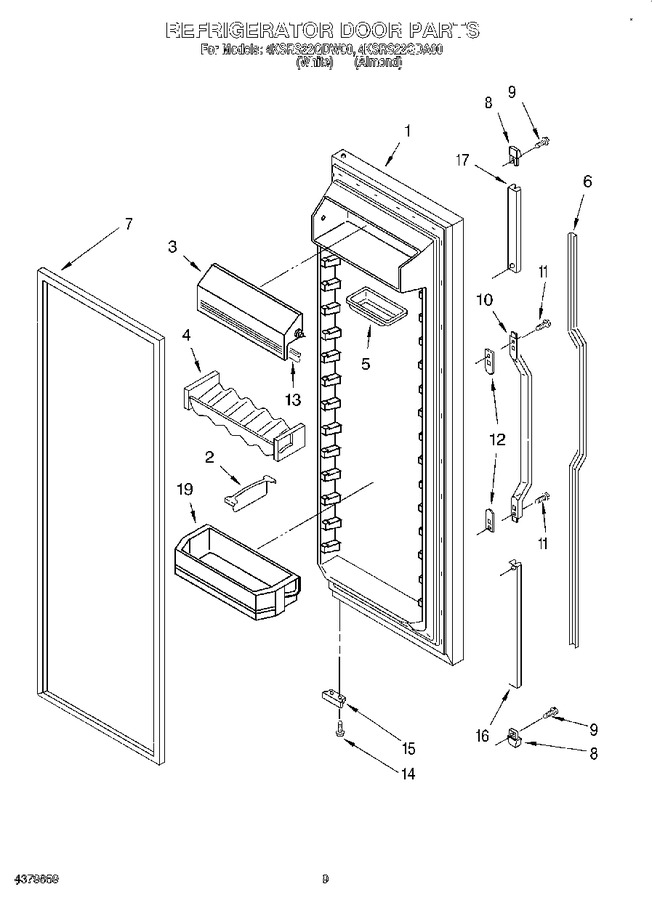

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171090		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2171091		Refrigerator Door (includes No.7) (almond)		Appelez-nous	-
2	2171283		Load, Lock (4)		Appelez-nous	-
3	2171078		Door, Compartment		Appelez-nous	-
4	1125981		Holder, Beverage		Appelez-nous	-
5	1125936		Butter, Tray		Appelez-nous	-
6	1117951		Insert, Handle (almond)		Appelez-nous	-
6	1117950		Insert, Handle (white)		Appelez-nous	-
7	2159073		Door Gasket, Magnetic (service)   (Replaces: 2177288)				$ 317.32
8	1107341		End Cap, Handle		Appelez-nous	-
9	489075		Screw		Appelez-nous	-
10	1107215		Handle Assembly		Appelez-nous	-
11	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
12	1107651		Spacer, Handle		Appelez-nous	-
13	2159124		Gasket, Door Compartment		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 10.87
15	2155332		Bracket, Door Stop		Appelez-nous	-
16	1117953		Retainer, Insert (bottom)		Appelez-nous	-
17	1107241		Retainer, Insert		Appelez-nous	-
19	4318417		Handle Inserts (black Grille Kit)		Appelez-nous	-
19	2171063		Shelf Bin (4)		Appelez-nous	-
19	4318336		Trim Kit		Appelez-nous	-
19	4210348		Acrylic Panel Kit (black)		Appelez-nous	-
19	4211148		Acrylic Panel Kit (white)		Appelez-nous	-
19	4211147		Acrylic Panel Kit (almond)		Appelez-nous	-
19	4318339		Handle Inserts (black)		Appelez-nous	-
19	4318340		Handle Inserts (woodgrain)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
