SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Freezer Liner


11 - Air Flow


12 - Icemaker, Lit/optional

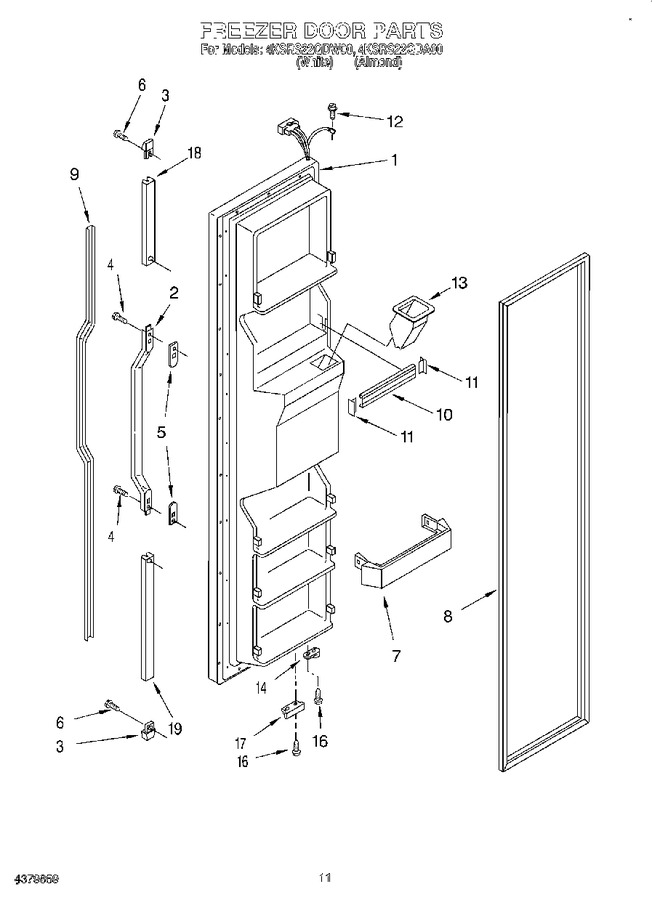

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2175122		Freezer Door (includes No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
1	2175121		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	1107215		Handle Assembly		Appelez-nous	-
3	1107341		End Cap (2)		Appelez-nous	-
4	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
5	1107651		Spacer, Handle		Appelez-nous	-
6	489075		Screw		Appelez-nous	-
7	2171071		Shelf Bin (4)		Appelez-nous	-
8	2159072		Door Gasket, Magnetic (service)   (Replaces: 2177287)				$ 308.19
9	1117951		Insert, Handle (almond)		Appelez-nous	-
9	1117950		Insert, Handle (white)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2171134)			Immediately	$ 23.11
11	WP2156006		End Cap   (Replaces: 2156006)			Immediately	$ 12.18
12	WP488234		Screw   (Replaces: 489422)				$ 6.74
13	2156146		Chute, Ice		Appelez-nous	-
14	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 27.36
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	2155332		Bracket, Door Stop		Appelez-nous	-
18	1107241		Retainer, Insert		Appelez-nous	-
19	1117953		Retainer, Insert		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
