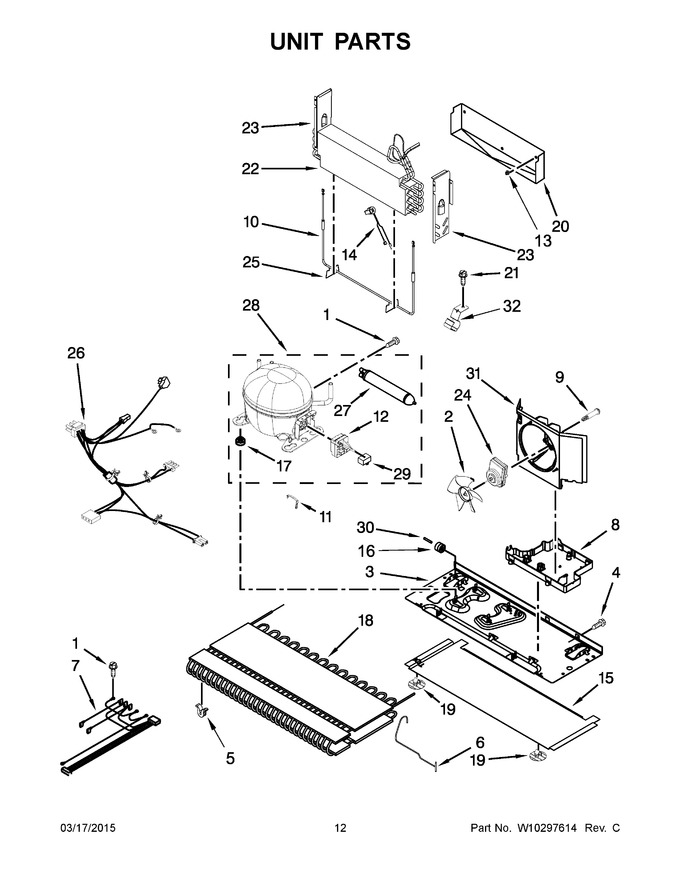

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 89.06 | ||||
| 3 | W11727651 | Basepan (Replaces: W10210985) |
|
$ 110.55 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 5 | WPW10137529 | Grommet, Condenser (Replaces: W10137529) |
|
$ 8.76 | |||||
| 6 | W10217746 | Tube, Discharge |
|
- | |||||
| 7 | W11260592 | Harness, Evaporator Heater (Replaces: W10280423) |
|
Immediately | $ 80.51 | ||||
| 8 | WPW10655368 | Pan, Drain (Replaces: W10296785) |
|
Immediately | $ 105.20 | ||||
| 9 | W10829281 | Screw (Replaces: W10216919) |
|
$ 13.28 | |||||
| 10 | W10825088 | Heater, Defrost (Replaces: 12729129) |
|
$ 166.16 | |||||
| 11 | 12745704 | Strap, Bale |
|
- | |||||
| 12 | WPW10244032 | Start Protect, Combo (device, Start) (Replaces: W10244032) |
|
$ 84.86 | |||||
| 13 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 14 | WPW10165425 | Thermostat (Replaces: 12639324SP) |
|
Immediately | $ 76.53 | ||||
| 15 | W10206338 | Extension, Basepan |
|
- | |||||
| 16 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 17 | WPW10169124 | Grommet, Compressor (Replaces: 10835903SP) |
|
$ 7.55 | |||||
| 18 | WPW10346415 | Condenser (Replaces: W10135026) |
|
$ 352.15 | |||||
| 19 | W10206339 | Fastener, Basepan |
|
$ 11.22 | |||||
| 20 | W11547653 | Tray, Drip (Replaces: 12225403WD) |
|
$ 57.02 | |||||
| 21 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 83.71 | |||||
| 22 | 12002041 | Evaporator (Replaces: 12726403) |
|
$ 366.06 | |||||
| 23 | 12225602 | Dam (left Hand) |
|
$ 14.66 | |||||
| 24 | W11613295 | Motor, Fan (Replaces: 12825101) |
|
Immediately | $ 143.68 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 26 | W10212854 | Harness, Unit |
|
- | |||||
| 27 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 28 | W10160407 | Compressor Kit (contains Items 12, 17, 27, & 29) (Replaces: 12049769) |
|
$ 629.92 | |||||
| 29 | WP65889-4 | Capacitor (Replaces: 2255130) |
|
Immediately | $ 69.00 | ||||
| 30 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 31 | W11556315 | Shroud, Condenser Fan (Replaces: W10189184) |
|
$ 83.64 | |||||
| 32 | 10547003 | Clip, Drier |
|
- | |||||
| 12A | WPW10197426 | Start Protect, Combo (device, Start (combination Relay And Overload)) (Replaces: W10136414) |
|
$ 162.06 | |||||
| 23A | 12225702 | Dam (right Hand) |
|
$ 14.09 | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 5.25 Oz. (r-134a) |
|
- |
