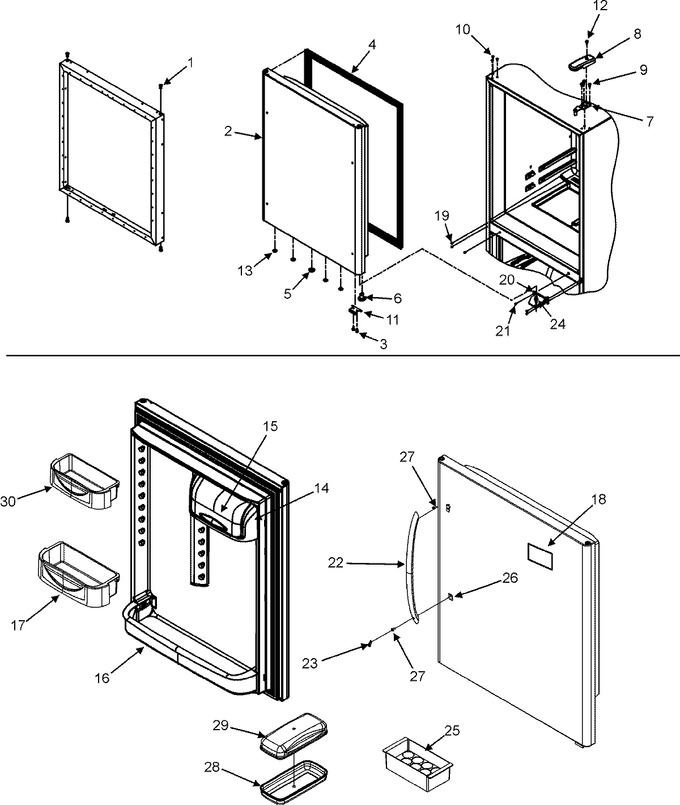

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) | 10 |
|
$ 21.05 | ||||
| 2 | 67005442 | Door Assy., Ref. Foam (stnls) | 10 |
|
- | ||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) | 10 |
|
Immediately | $ 7.76 | |||
| 4 | W10849442 | Gasket, Ref Door (blk) (Replaces: 67003557) | 10 |
|
$ 344.33 | ||||
| 5 | A3080001 | Plug, Button (blk) | 10 |
|
- | ||||
| 6 | WP67003639 | Closure, Door (blk) (Replaces: 67003639) | 10 |
|
$ 86.02 | ||||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 44.89 | |||
| 8 | 67001012 | Cover, Top Hinge (blk) | 10 |
|
$ 47.34 | ||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) | 10 |
|
$ 9.38 | ||||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) | 10 |
|
Immediately | $ 7.76 | |||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 67003780) | 10 |
|
Immediately | $ 14.05 | |||
| 12 | WPW10348409 | Screw, Mounting (Replaces: M0211533) | 10 |
|
Immediately | $ 7.76 | |||
| 13 | 67004838 | Plug, Vent (blk) | 10 |
|
$ 10.68 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 83.82 | |||
| 15 | WP67003637 | Door, Dairy (Replaces: 67003637) | 10 |
|
Immediately | $ 78.73 | |||
| 16 | 67003027 | Retainer, Ref Dr | 10 |
|
- | ||||
| 17 | 67004530 | Bucket, Ref Dr (lg) | 10 |
|
- | ||||
| 18 | 2324038 | Nameplate (Replaces: 67003877) | 10 |
|
$ 68.18 | ||||
| 19 | WP489349 | Screw, Tf (Replaces: M0239730) | 10 |
|
Immediately | $ 7.88 | |||
| 20 | WP12607104ED | Hinge, Center (blk) (Replaces: 67001167) | 10 |
|
$ 152.73 | ||||
| 21 | W11573362 | Screw, T. F. (Replaces: M0226233) | 10 |
|
$ 14.02 | ||||
| 22 | 67001914 | Handle, Ref. Door (stnls) | 10 |
|
- | ||||
| 23 | 67002136 | Cap, Handle (stnls) | 10 |
|
$ 5.84 | ||||
| 24 | WP67006642 | Pin, Center Hinge (Replaces: 67002734) | 10 |
|
$ 7.93 | ||||
| 25 | 67215-2 | Tray, Egg | 10 |
|
- | ||||
| 26 | 67002160 | Clip, Door Handle | 10 |
|
$ 20.12 | ||||
| 27 | R9800670 | Screw, Mounting (Replaces: M0223230) | 10 |
|
$ 9.38 | ||||
| 28 | 67004404 | Tray, Butter | 10 |
|
- | ||||
| 29 | 67004405 | Lid, Butter Tray | 10 |
|
- | ||||
| 30 | 67004040 | Bucket, Ref Dr (med) | 10 |
|
$ 91.42 |
