SELECT A DIAGRAM

01 - Cover

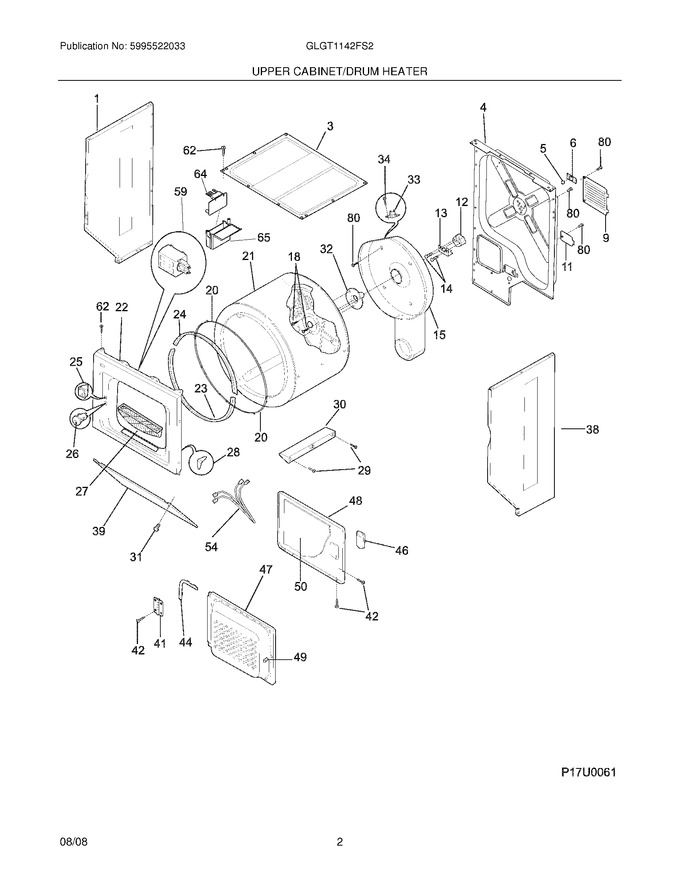

03 - Upper Cabinet/drum Heater


05 - Motor/blower/belt


07 - Control Panel


09 - Lower Cabinet/top


11 - Motor/tub


13 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131084710		Panel,white ,left Side				$ 157.51
3	131883301		Panel,top				$ 307.76
4	134799902		Panel,rear ,steel ,galvanized				$ 180.25
5	5303281019		Ball,grounding				$ 18.11
6	5303281020		Clip,ball ,steel ,flat Nut				$ 18.90
9	3204249		Panel,motor Access ,rear		Appelez-nous	-
11	5303207395		Cover-terminal Block		Appelez-nous	-
12	131825900		Bearing-drum Support			Immediately	$ 12.19
13	131724301		Bracket,bearing Support   (Replaces: 131724300)			Immediately	$ 28.51
14	131205400		Screw,bracket Mtg. ,10-16b X 1.375 ,cr/sq Drive				$ 14.18
15	131776500		Housing,heater,w/duct		Appelez-nous	-
18	131168200		Screw,10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 15.75
20	137513300		Glide-drum   (Replaces: 131963900)			Immediately	$ 40.75
21	134122552		Drum,dryer ,stainless Steel ,service Kit				$ 398.53
22	131636237		Panel,front ,white		Appelez-nous	-
23	5303937183		Seal,felt ,lower   (Replaces: 134134700)			Immediately	$ 39.86
24	5303937182		Seal,felt ,upper   (Replaces: 134036400)			Immediately	$ 36.16
25	131658800		Door Catch,upper			Immediately	$ 75.98
27	5304516871		Lint Trap   (Replaces: 131359600)			Immediately	$ 46.67
28	134440000		Clip,guide		Appelez-nous	-
29	131382300		Screw,quadrex Head ,10-14 X 1.00 ,vane Mtg.,special			Immediately	$ 14.96
30	5304453716		Vane,straight ,gray		Appelez-nous	-
31	131202300		Screw,10-16ab X 0.625			Immediately	$ 14.96
32	131777700		Shaft,drum Support ,ballhitch			Immediately	$ 79.85
34	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 11.62
38	131084810		Panel,white ,right Side				$ 94.42
39	137546910		Panel,access ,white ,front   (Replaces: 131084402)				$ 204.65
41	134222900		Hinge,dryer Door				$ 25.20
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 16.54
44	137551901		Gasket,door Seal   (Replaces: 131129900)			Immediately	$ 45.56
46	131789400		Handle-door, White			Immediately	$ 70.88
47	137365110		Panel,inner Door ,white   (Replaces: 131579103)				$ 255.15
48	131789303		Panel,outer Door ,white				$ 168.47
49	5303207102		Door Strike   (Replaces: 5303211430)			Immediately	$ 22.05
50	134535300		Insulator,heat Shield ,outer Door				$ 66.94
62	131302800		Screw,10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 29.53
65	131894600		Housing,temp Cont Board		Appelez-nous	-
80	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 15.75
F26	134813601		Switch,door ,rectangle ,with Drum Light   (Replaces: 131843101)			Immediately	$ 36.77
F33	5304406099		Thermostat-safety			Immediately	$ 133.98
F54	134403200		Wiring Harness,door Switch ,with Light		Appelez-nous	-
F59	131843500		Lamp Assy,drum Light ,w/mtg Bracket				$ 81.11
F64	131891010		Control Board,temperature ,atc				$ 145.16
FNI	134805600		Wiring Harness,atc Jumper				$ 54.65

    View Diagram in Separate Window       Print Part List
