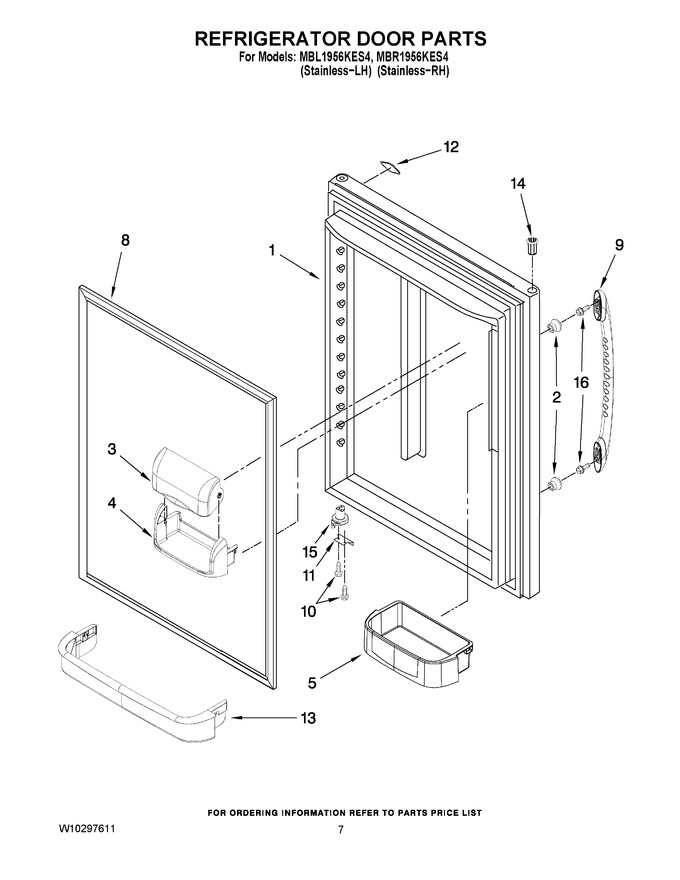

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13023887SQ | Door, Refrigerator (stainless Steel-lh) |
|
- | |||||
| 1 | 13023886SQ | Door, Refrigerator (stainless Steel-rh) |
|
- | |||||
| 2 | WP67006113 | Screw (handle-mount-(2)) (Replaces: 13001201) |
|
Immediately | $ 11.96 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 78.73 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | 67004040 | Bucket, Medium (2) (Replaces: 12801902V) |
|
$ 91.42 | |||||
| 5 | WP67004041 | Bucket, Small (2) (Replaces: 12801901V) |
|
$ 84.77 | |||||
| 8 | WPW10436245 | Gasket, Door (black) (Replaces: W10164031) |
|
$ 345.10 | |||||
| 9 | W11690159 | Handle, Door (stainless) (Replaces: W10197295) |
|
$ 165.49 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.05 | ||||
| 12 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 67.14 | ||||
| 13 | 12690501 | Retainer, Ref Door |
|
$ 41.75 | |||||
| 14 | 67004978 | Bushing (4) (black) (Replaces: 10961006B) |
|
$ 21.05 | |||||
| 15 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 16 | 67006901 | Screw-flat-(2) (Replaces: 12991703) |
|
Immediately | $ 8.02 |
