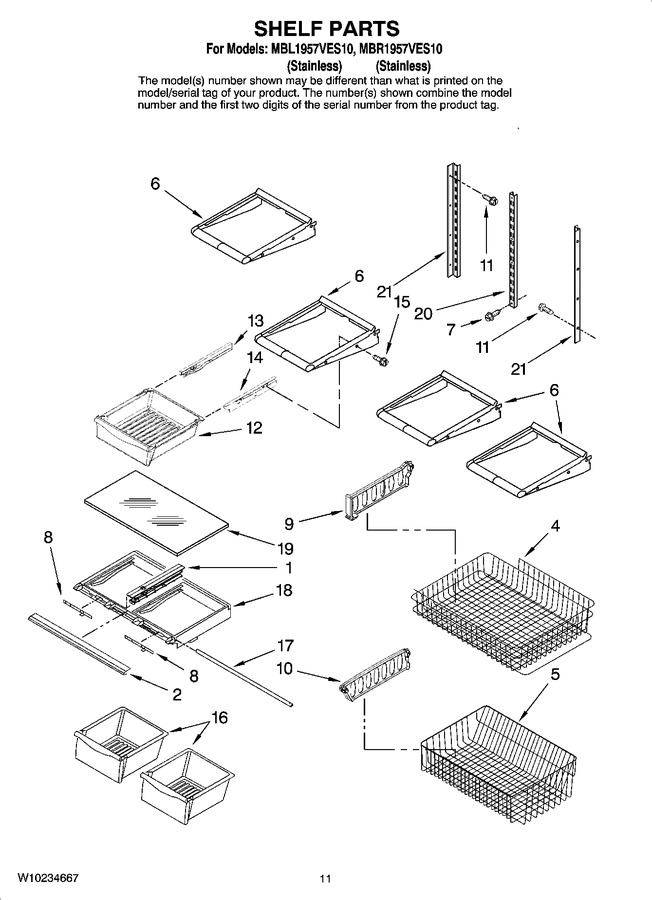

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10671238		Rail, Center Crisper   (Replaces: 67001057)			Immediately	$ 118.46
2	67003879		Trim, Crisper		Appelez-nous	-
4	W10201224		Basket, Freezer (upper)		Appelez-nous	-
5	W10503182		Basket, Freezer (lower)   (Replaces: W10146449)				$ 241.97
6	W11402522		Shelf (4)   (Replaces: 12463608)				$ 203.51
7	W10709795		Screw   (Replaces: 67006360)				$ 13.79
8	WP67005864		Slide, Humidity Control   (Replaces: 67005864)			Immediately	$ 8.20
9	W10171557		Divider, Basket (upper)		Appelez-nous	-
10	W10205416		Divider, Basket Lower		Appelez-nous	-
11	67006425		Screw   (Replaces: 67006400)			Immediately	$ 7.30
12	WP67001308		Pan, Deli   (Replaces: 67001308)			Immediately	$ 138.10
13	WP67001054		Glide, Left   (Replaces: 67001054)			Immediately	$ 8.82
14	WP67001053		Glide, Right   (Replaces: 67001053)			Immediately	$ 9.24
15	W11233072		Screw, Glide (4)   (Replaces: 67006626)			Immediately	$ 14.72
16	W10833528		Pan, Crisper   (Replaces: 67002569)			Immediately	$ 139.95
17	WP12227302WD		Brace, Crisper   (Replaces: 67001155)				$ 111.60
18	WPW10671240		Frame, Crisper   (Replaces: 67001153)			Immediately	$ 138.10
19	WP67006877		Glass, Crisper Cover   (Replaces: 67006877)			Immediately	$ 209.75
20	67001073		Ladder, Center				$ 56.89
21	67001302		Ladder, Side		Appelez-nous	-
NI	1117510		Torx Key				$ 5.84
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.78
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 182.65
NI	4392901		Paint, Pressurized Spray (12 Oz) (biscuit)		Appelez-nous	-
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	350942		Paint, Pressurized Spray (12 Oz) (primer, White)				$ 94.14
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
NI	285006		Paint, Pressurized Spray(12 Oz.) (black)   (Replaces: 350939)				$ 59.89
NI	4392900		Paint, Bulk (1 Qt.) (biscuit (uncut)		Appelez-nous	-
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	833938		Kit, Terminal Connector				$ 8.47
NI	4396418		Complete Ice Maker   (Replaces: 67001740)				$ 340.53
NI	799344		Paint, Bulk (1 Qt.) (black Uncut))				$ 237.46
NI	31462		Cleaner, 10 Oz. (stainless Steel)		Appelez-nous	-
