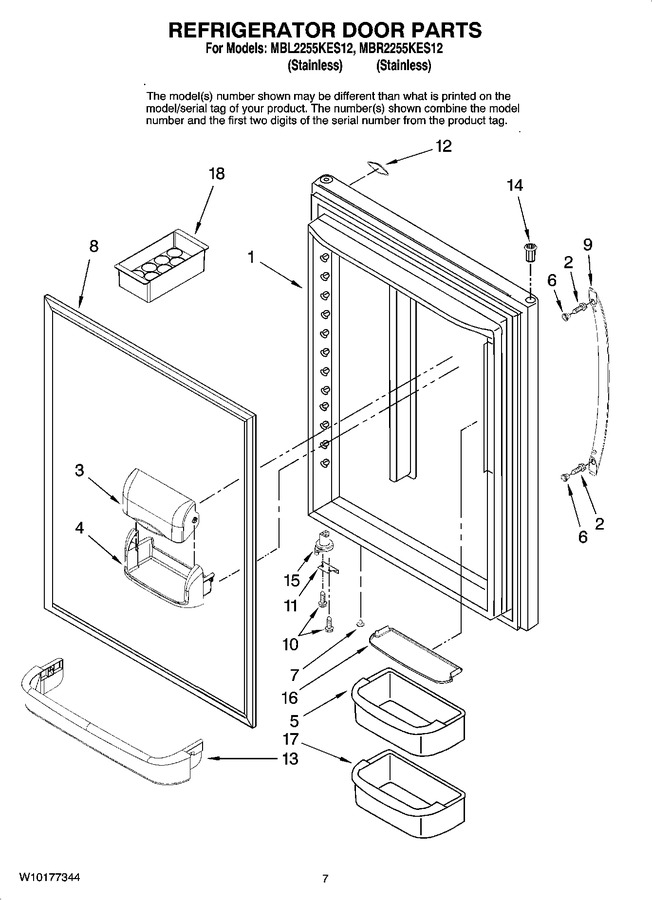

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10175930 | Door, Refrigerator (stainless (for Mbl2255kes12)) |
|
- | |||||
| 1 | W10175929 | Door, Refrigerator (stainless (for Mbr2255kes12)) |
|
- | |||||
| 2 | WP3387230 | Screw, Handle (Replaces: 67002935) |
|
Immediately | $ 8.54 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 67003637) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371193 | Bucket, Medium (2) (includes Gripper) (Replaces: 67003770) |
|
Immediately | $ 74.80 | ||||
| 6 | WP67006113 | Mount, Handle (Replaces: 67006113) |
|
Immediately | $ 12.56 | ||||
| 7 | 67004838 | Plug, Button (2) (black) |
|
$ 11.21 | |||||
| 8 | WPW10436248 | Gasket, Door (black) (Replaces: W10131327) |
|
$ 286.97 | |||||
| 9 | W11690159 | Handle, Door (stainless) (Replaces: W10136871) |
|
$ 173.76 | |||||
| 10 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 14.75 | ||||
| 12 | 2324038 | Nameplate (Replaces: 67006439) |
|
$ 71.59 | |||||
| 13 | 67001748 | Retainer, Ref Door |
|
- | |||||
| 14 | 67004978 | Bushing (4) (black) |
|
$ 22.10 | |||||
| 15 | WP67003639 | Closure, Door (black) (Replaces: 67003639) |
|
$ 90.32 | |||||
| 16 | 67003212 | Gripper (2) |
|
- | |||||
| 17 | WPW10371193 | Bucket, Medium (2) (Replaces: 67003775) |
|
Immediately | $ 74.80 | ||||
| 18 | 67215-2 | Tray, Egg |
|
- |
