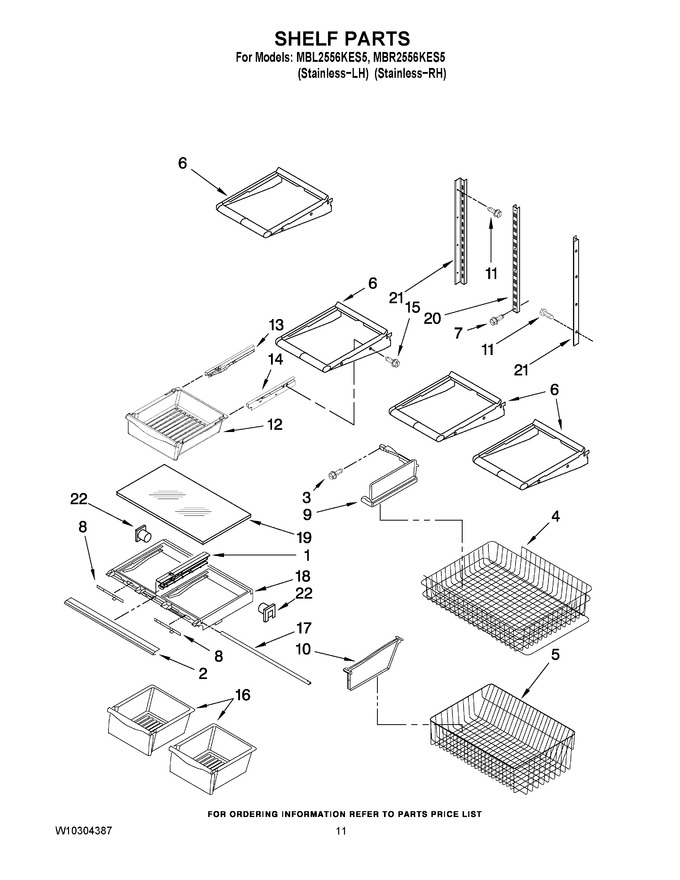

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10326469 | Rail, Center Crisper (Replaces: 12796401) |
|
Immediately | $ 33.37 | ||||
| 2 | WPW10231345 | Trim, Crisper (Replaces: W10231345) |
|
$ 137.67 | |||||
| 3 | 12990601 | Screw |
|
- | |||||
| 4 | 12896403 | Basket, Freezer (upper) |
|
- | |||||
| 5 | WPW10503184 | Basket, Freezer (lower) (Replaces: 13016003) |
|
$ 250.08 | |||||
| 6 | W10205737 | Shelf (4) (Replaces: 12654710) |
|
$ 304.16 | |||||
| 7 | W10709795 | Screw (Replaces: 12990515) |
|
$ 13.79 | |||||
| 8 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 9 | 12693802 | Divider, Basket (upper) |
|
- | |||||
| 10 | 12659608 | Divider, Basket Lower |
|
- | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 12 | 12802801SP | Pan, Deli |
|
- | |||||
| 13 | WP67001054 | Glide-left (Replaces: 12656601SP) |
|
Immediately | $ 8.82 | ||||
| 14 | WP67001053 | Glide-right (Replaces: 12656602SP) |
|
Immediately | $ 9.24 | ||||
| 15 | W11233072 | Screw, Glide (4) (Replaces: 12990302SP) |
|
Immediately | $ 14.72 | ||||
| 16 | WP67004515 | Pan, Crisper (Replaces: 12804601) |
|
Immediately | $ 176.72 | ||||
| 17 | WP12642303WD | Brace, Crisper (Replaces: 12642303WD) |
|
$ 112.26 | |||||
| 18 | WP67003854 | Frame, Crisper (Replaces: 12796301SP) |
|
Immediately | $ 227.55 | ||||
| 19 | WP67006704 | Glass, Crisper Cover (Replaces: 12204824) |
|
$ 212.77 | |||||
| 20 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 21 | W10251969 | Ladder, Side |
|
$ 31.44 | |||||
| 22 | WP13062602 | Support,crisper(2) (Replaces: 13062602) |
|
$ 84.87 |
