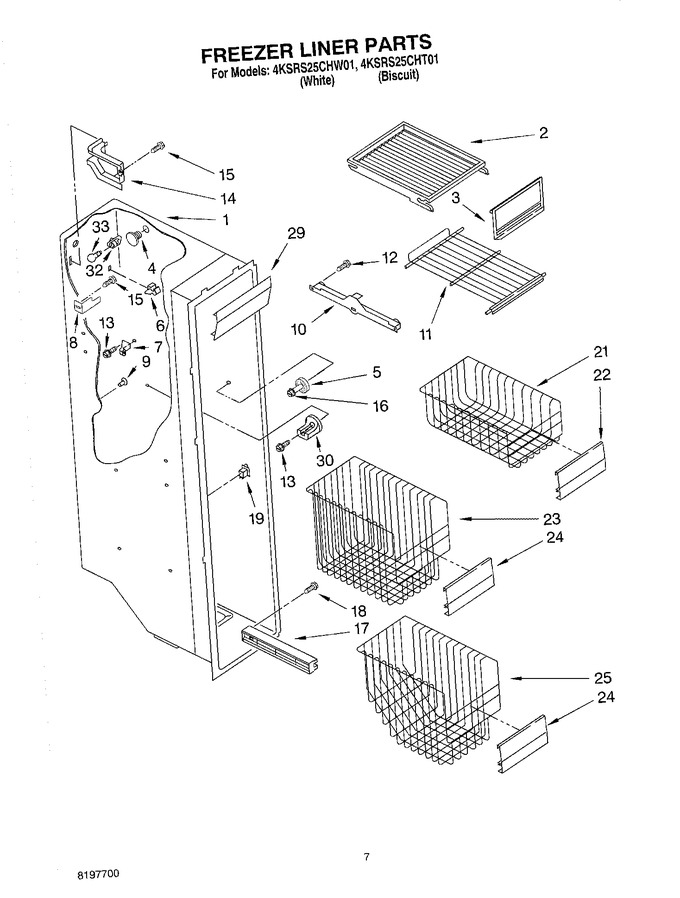

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2174493		Shelf, Top Compartment		Appelez-nous	-
3	WP2171713		Door, Ice Compartment   (Replaces: 2171713)				$ 87.27
4	940014		Hole Plug				$ 18.33
5	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	2196206		Support, Stud		Appelez-nous	-
8	2209674		Bracket, Fill Tube		Appelez-nous	-
9	2176134		Grommet (2)				$ 5.83
10	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
10	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
11	WP2174267		Shelf   (Replaces: 2174267)				$ 88.90
12	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
13	W10142289		Screw   (Replaces: 3400893)				$ 9.15
14	2155572		Cover, Wiring		Appelez-nous	-
15	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.02
16	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
17	2181759		Shelf Track (left Side (3))		Appelez-nous	-
17	2181760		Shelf Track (right Side (3))		Appelez-nous	-
18	W10759522		Screw   (Replaces: 486298)				$ 7.75
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
21	2181763		Basket, Shallow		Appelez-nous	-
22	2171767		Front, Basket		Appelez-nous	-
23	2181765		Basket, Square		Appelez-nous	-
24	2305580K		Basket, Front   (Replaces: 2171766)				$ 57.42
25	2181764		Basket, Sloped		Appelez-nous	-
29	2171705		Lens, Light				$ 94.68
30	2196207		Stud, Rear				$ 7.61
32	WP2175210		Socket, Light   (Replaces: 2169193)				$ 82.61
33	WP67002552		Bulb, Light   (Replaces: 851682)			Immediately	$ 11.75
