View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

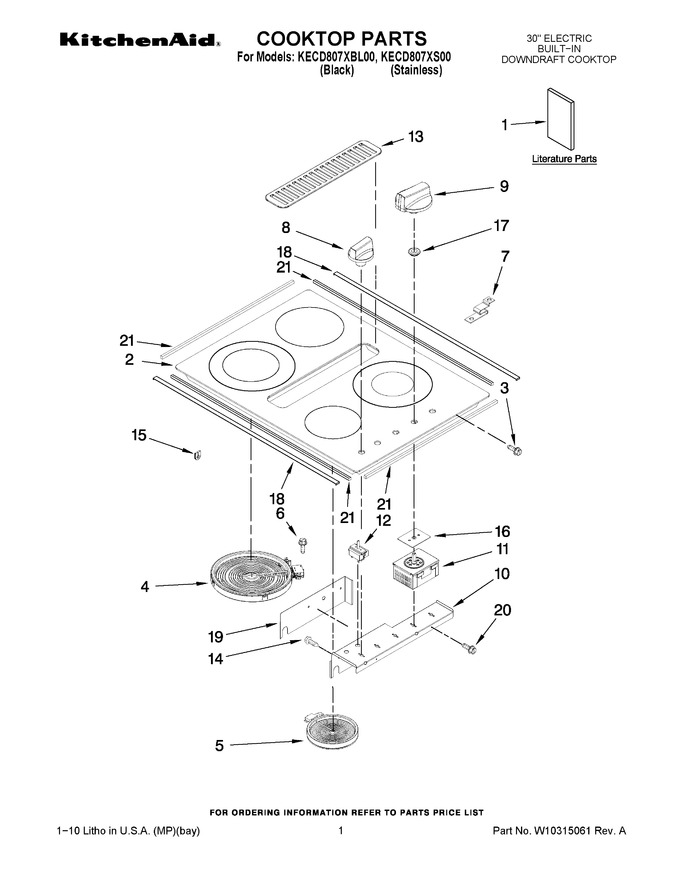

01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box Assembly
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10298568 | Installation Instructions |
|
- | |||||
| 1 | W10296511 | Use & Care Guide |
|
- | |||||
| 1 | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | W10297402 | Tech Sheet |
|
- | |||||
| 2 | W10296247 | Top, Main (black/stainless) |
|
$ 990.98 | |||||
| 3 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.55 | ||||
| 4 | W11171119 | Element, Surface (rf) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 4 | WPW10178022 | Element, Surface (lf/rr) (Replaces: W10178022) |
|
Immediately | $ 320.07 | ||||
| 4 | WP8273993 | Element, Surface (lr) (Replaces: 8273993) |
|
Immediately | $ 244.51 | ||||
| 5 | WPW10221529 | Element, Ribbon (Replaces: W10221529) |
|
$ 355.46 | |||||
| 6 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 7 | 8004P093-60 | Support, Ceramic |
|
$ 10.61 | |||||
| 8 | W10298840 | Switch, Fan |
|
$ 44.86 | |||||
| 9 | WPW10298835 | Knob, Control (Replaces: W10298835) |
|
$ 24.69 | |||||
| 10 | W10294445 | Plate, Switch |
|
- | |||||
| 11 | WPW10222828 | Switch, Control (lr/rf) (Replaces: W10222828) |
|
Immediately | $ 289.40 | ||||
| 11 | WPW10234425 | Switch, Control (rr) (Replaces: W10234425) |
|
Immediately | $ 227.56 | ||||
| 11 | WPW10215034 | Switch, Control (lf) (Replaces: W10215034) |
|
Immediately | $ 249.50 | ||||
| 12 | WP4456836 | Switch, Blower (Replaces: 4456836) |
|
Immediately | $ 175.74 | ||||
| 13 | WPW10205094 | Grille, Air (Replaces: W10205094) |
|
$ 255.44 | |||||
| 14 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.55 | ||||
| 15 | 8008P068-60 | Wire, Grommet |
|
$ 16.79 | |||||
| 16 | WP71002569 | Gasket, Switch (Replaces: 7201P077-60) |
|
Immediately | $ 10.57 | ||||
| 17 | WPW10293874 | Grommet, Switch (Replaces: 8008P076-60) |
|
Immediately | $ 8.46 | ||||
| 18 | W10168883 | Trim Stainless Only (rear Trim) |
|
$ 56.79 | |||||
| 18 | W10294282 | Trim Stainless Only (front Trim) |
|
$ 124.16 | |||||
| 19 | W10223167 | Bracket, Switch Plate Shield |
|
- | |||||
| 20 | WP7101P309-60 | Screw, 8-32 X7/32 (Replaces: 7101P309-60) |
|
Immediately | $ 7.30 | ||||
| 21 | 12002793 | Tape, Foam (Replaces: 8270P188-60) |
|
$ 82.80 |
