SELECT A DIAGRAM

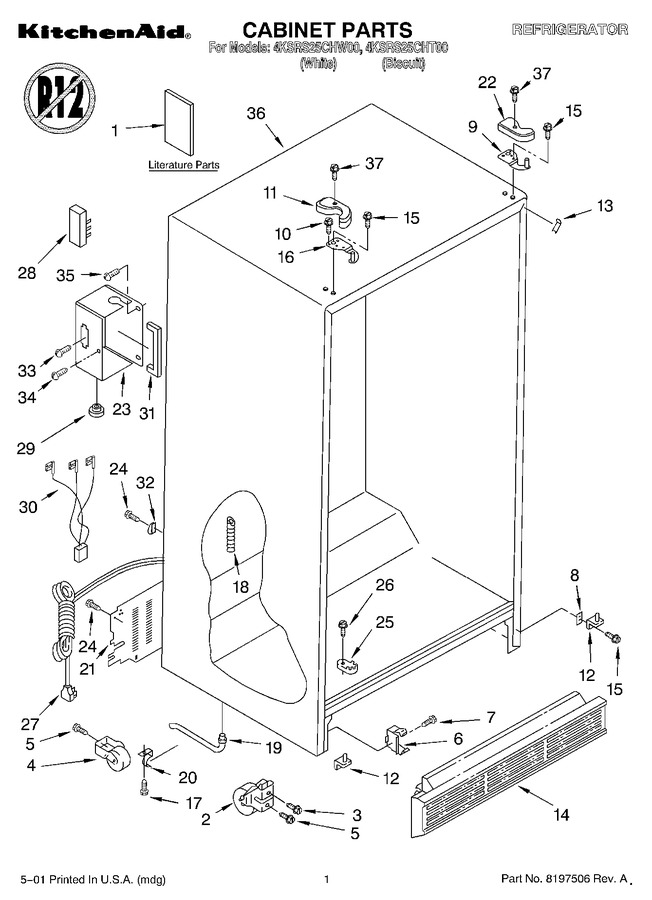

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Air Flow


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2204237		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT628371		Modular Icemaker Service Sheet		Appelez-nous	-
1	LIT2214417		Literature Parts (use & Care Guide)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
8	WP2181911		Shim (rh & Lh)   (Replaces: 2156056)				$ 33.21
8	2209697		Shim (lh Only)				$ 41.25
9	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
10	WP489128		Screw   (Replaces: 8281149)				$ 10.88
11	WP2203407W		Hinge Cover (white)   (Replaces: 2203407W)				$ 20.75
11	2203407T		Hinge Cover (biscuit)		Appelez-nous	-
12	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 88.90
13	2196095		Filler, Wrapper (almond)		Appelez-nous	-
13	2196094		Filler, Wrapper (white)		Appelez-nous	-
14	WPW10283946		Grille (white)   (Replaces: 2198470W)				$ 143.52
14	W10283947		Grille (almond)   (Replaces: 2198470N)				$ 35.89
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
18	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 50.90
19	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
21	2204421		Cover, Unit		Appelez-nous	-
22	WP2203408W		Hinge Cover (white)   (Replaces: 2203408W)				$ 20.97
22	2203408T		Hinge Cover (biscuit)		Appelez-nous	-
23	2188194		Enclosure, Terminal Block		Appelez-nous	-
24	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
25	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
26	WP489483		Screw   (Replaces: 489483)				$ 10.87
27	1129332		Service Cord		Appelez-nous	-
28	1129346		Terminal Block		Appelez-nous	-
29	1129449		Bushing		Appelez-nous	-
30	2209657		Wiring Assembly		Appelez-nous	-
31	2167227		Gasket		Appelez-nous	-
32	489348		Clamp		Appelez-nous	-
33	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.82
34	WP489399		Screw   (Replaces: 489399)				$ 6.95
35	WP489463		Screw   (Replaces: 489463)				$ 7.82
36	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
37	WP8281227		Screw   (Replaces: 8281227)				$ 10.44

    View Diagram in Separate Window       Print Part List
