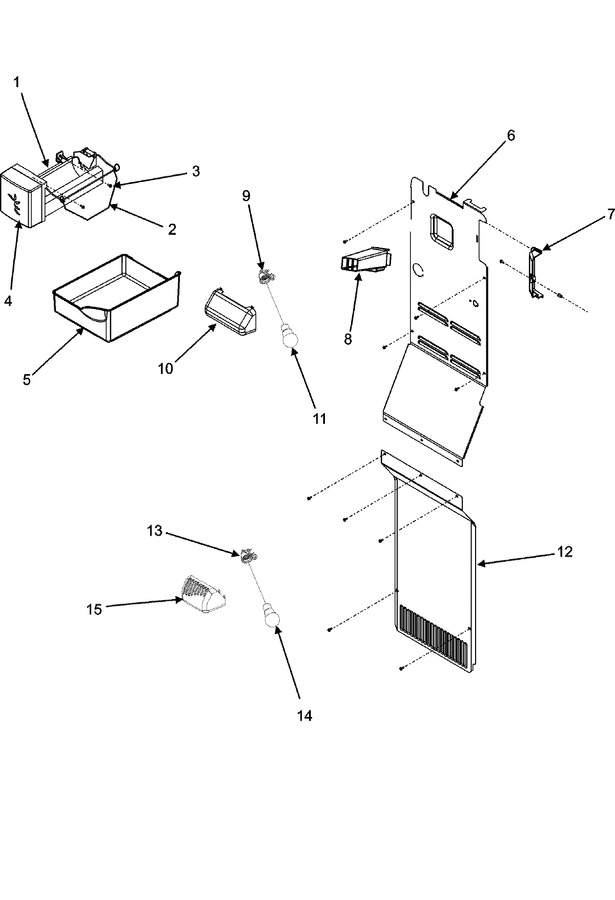

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7824706Q		Ice Maker Assy.   (Replaces: 61005508)	10		Immediately	$ 167.35
1	WP2256087		Brkt, Ice Maker   (Replaces: 67002823)	10			$ 97.65
2	12671401		Assy, Im Arm/wire	10	Appelez-nous	-
3	M0238833		Screw Shoulder	10	Appelez-nous	-
4	WPW10289690		Cover, Ice Maker   (Replaces: 12582501)	10		Immediately	$ 8.82
5	WP67001255		Pan, Ice   (Replaces: 10476207)	10			$ 213.23
6	67004382		Back, Inner Fz	10	Appelez-nous	-
6	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 7.30
7	M0580205		Grommet, Screw	10	Appelez-nous	-
7	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 7.30
7	12583101		Cover, Supply Air	10	Appelez-nous	-
8	67003581		Duct, Quick Ice	10	Appelez-nous	-
9	W11447232		Socket, Light   (Replaces: Y12570701)	10		Immediately	$ 13.87
10	67001507		Shield, Crisper Light	10	Appelez-nous	-
11	W11679940		Bulb, Light   (Replaces: 67003883)	10		Immediately	$ 11.30
12	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 7.30
12	67004192		Cover, Evap	10	Appelez-nous	-
13	W11447232		Socket, Light   (Replaces: Y12570701)	10		Immediately	$ 13.87
14	W11679940		Bulb, Light   (Replaces: 67003883)	10		Immediately	$ 11.30
15	67004135		Shield, Fz Light	10	Appelez-nous	-
