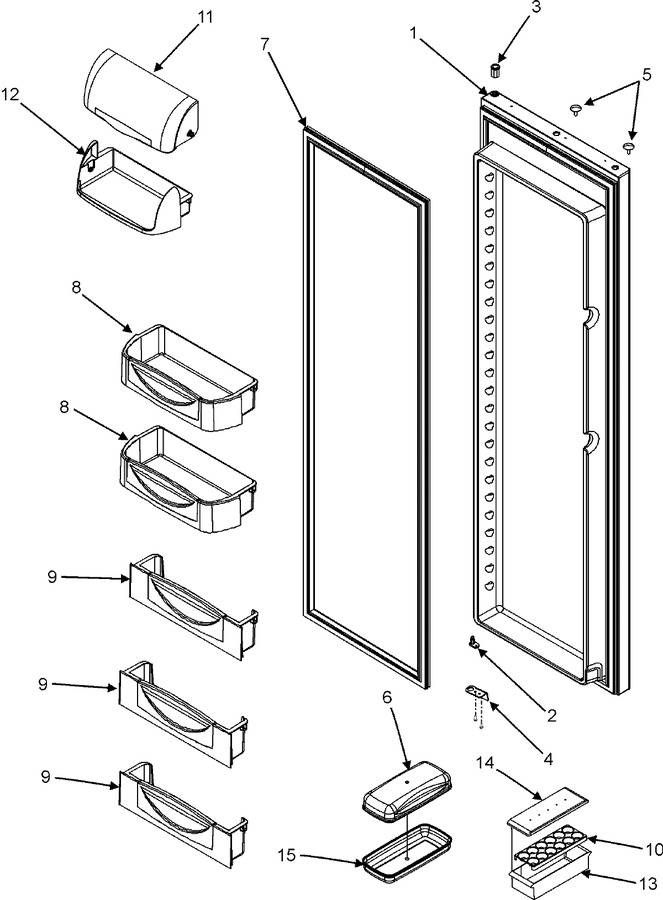

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006822		Door Assy., Ref. Foam (stnls)	10	Appelez-nous	-
2	67006134		Closure, Door (blk)	10	Appelez-nous	-
3	67004976		Bushing, Door (blk)	10	Appelez-nous	-
4	67006516		Stop, Door (blk)	10	Appelez-nous	-
4	67006672		Screw	10	Appelez-nous	-
5	M0311607		Plug, Button (gry)	10	Appelez-nous	-
6	67004405		Lid, Butter Tray	10	Appelez-nous	-
7	W10840101		Gasket, Ref. Door (blk)   (Replaces: 67003965)	10			$ 327.25
8	67004229		Bucket Assy., Ref. Door	10	Appelez-nous	-
9	67004473		Bucket Assy., Ref. Door	10	Appelez-nous	-
10	10436506		Tray, Egg	10			$ 8.28
11	67001325		Door, Dairy	10	Appelez-nous	-
12	67002304		Tray, Dairy	10	Appelez-nous	-
13	10423131		Bin, Utility	10			$ 31.13
14	10436404		Lid, Utility	10			$ 60.85
15	67004404		Tray, Butter	10	Appelez-nous	-
