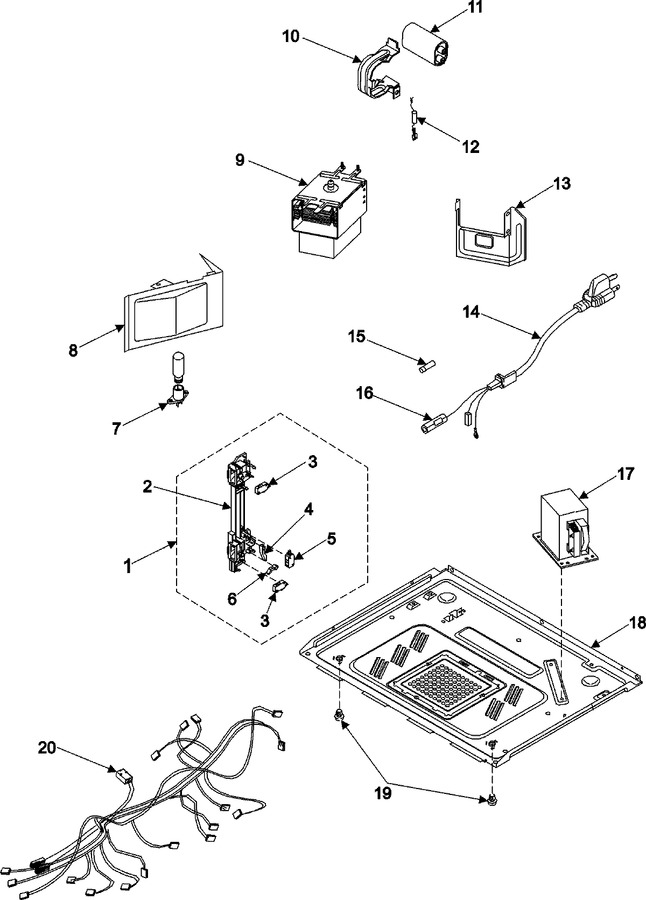

01 - Blower Motor
02 - Body/cavity/elements
03 - Control Panel/door Assembly
04 - Internal Controls/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | DE66-00132A | Latch-body |
|
- | |||||
| 3 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 16.50 | ||||
| 4 | DE66-00093A | Lever-switch(a) |
|
$ 18.69 | |||||
| 5 | 3405-001032 | Switch-micro |
|
$ 24.63 | |||||
| 6 | DE66-00094A | Lever-switch(b) |
|
$ 23.81 | |||||
| 7 | 4713-001012 | Lamp-incandescent |
|
$ 40.81 | |||||
| 8 | DE63-00194A | Cover-air |
|
- | |||||
| 9 | WPW10126794 | Assy-magnetron (Replaces: W10126805) |
|
$ 329.26 | |||||
| 10 | DE61-00521A | Bracket-hvc;mw8rowc,secc,t0.6, |
|
$ 3.27 | |||||
| 11 | 2501-001035 | C-oil |
|
Immediately | $ 113.23 | ||||
| 12 | DE91-70063D | Assy-hvd |
|
Immediately | $ 17.65 | ||||
| 13 | DE61-00616A | Bracket-mgt |
|
- | |||||
| 14 | DE39-20146E | Assy Power Cord |
|
- | |||||
| 15 | 3601-001197 | Fuse-cartridge |
|
$ 20.00 | |||||
| 16 | DE47-40025A | Holder, Fuse |
|
- | |||||
| 17 | DE26-00100A | Trans H.v |
|
- | |||||
| 18 | DE61-00520A | Base-plate |
|
- | |||||
| 19 | DE61-40066A | Foot |
|
$ 19.53 | |||||
| 20 | DE96-00339A | Assy-wire Harness-a |
|
- |
