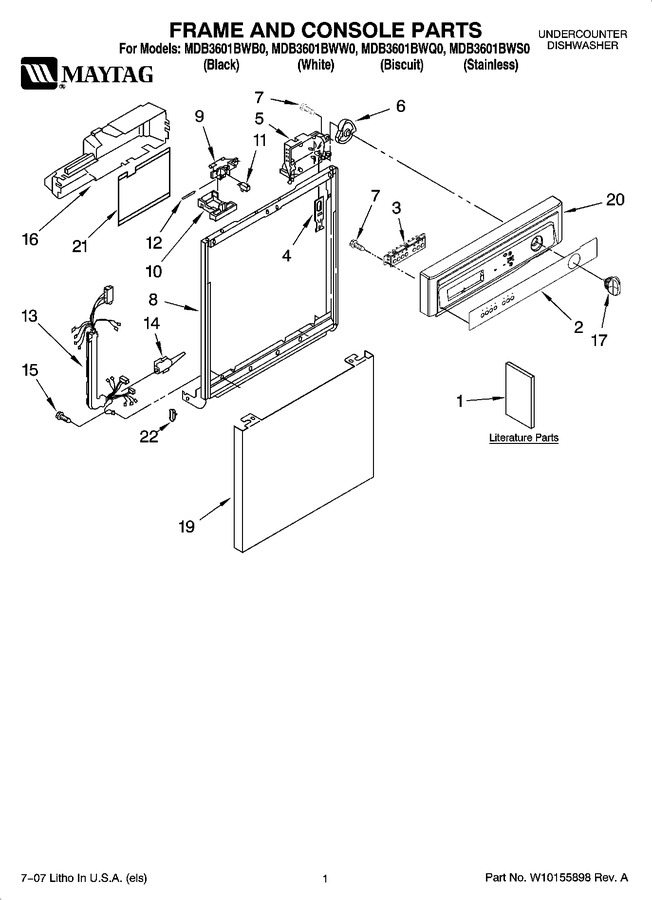

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3385497		Diagram, Wiring		Appelez-nous	-
1	W10133201		Guide, Energy		Appelez-nous	-
1	8535436		Instructions, Installation		Appelez-nous	-
1	W10102585		Guide, Use & Care		Appelez-nous	-
2	W10133195		Insert, Console (biscuit)		Appelez-nous	-
2	W10133194		Insert, Console (white)		Appelez-nous	-
2	W10133193		Insert, Console (black)		Appelez-nous	-
3	8269366		Switch				$ 340.41
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WPW10199587		Timer   (Replaces: W10039480)				$ 345.81
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.96
7	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 8.14
8	9743028		Door Frame (black)				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3384155		Lever, Latch (biscuit)		Appelez-nous	-
10	3380778		Lever, Latch (black)				$ 5.84
10	3380779		Lever, Latch (white)		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8573183		Harness And Protector				$ 289.02
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw,   (Replaces: 3400892)				$ 8.24
16	3379954		Cover, Control		Appelez-nous	-
17	3379290		Knob, Timer (white)   (Replaces: 3379291)				$ 78.50
17	3384821		Knob, Timer (biscuit)				$ 79.70
17	3379290		Knob, Timer (black)				$ 78.50
19	3379375		Panel, Front (black)				$ 115.07
19	9743581		Panel, Front (stainless)		Appelez-nous	-
19	8054178		Panel, Front (biscuit)				$ 111.70
19	3379376		Panel, Front (white)				$ 116.81
20	W10142869		Console (includes Item 2) (white)				$ 352.92
20	W10142868		Console (includes Item 2) (black)		Appelez-nous	-
20	W10142870		Console (includes Item 2) (biscuit)		Appelez-nous	-
21	3379671		Shield, Control Cover		Appelez-nous	-
22	WP3373234		Bearing, Spring, (2)   (Replaces: 3373234)				$ 11.01
