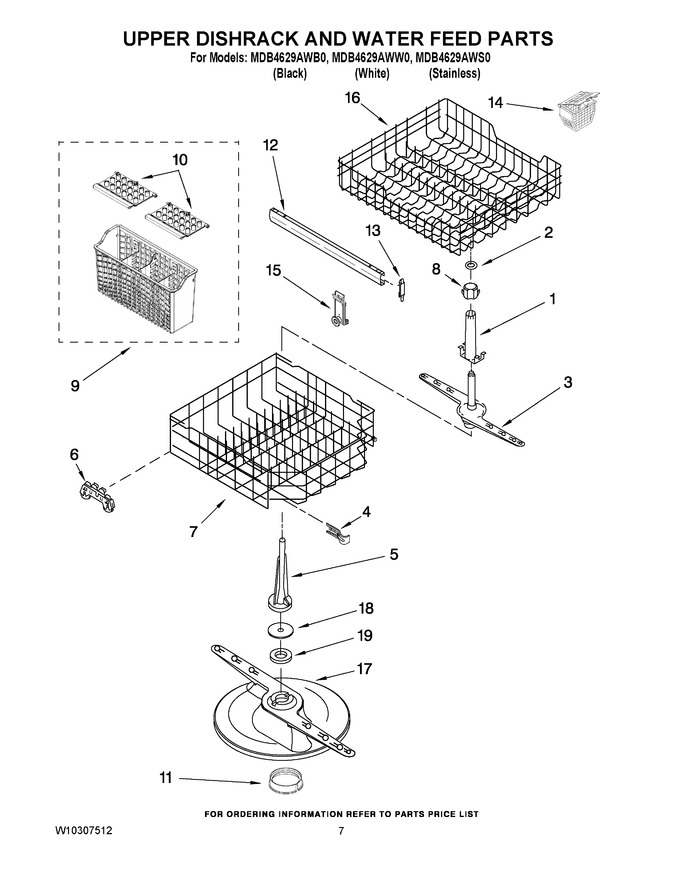

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8268838		Support, Arm (also Order Items 2 & 8)		Appelez-nous	-
2	303722		Clip				$ 5.75
3	8268829		Spray Arm, Upper (also Order Item 8)				$ 42.16
4	WP3385142		Bumper (2)   (Replaces: 3385142)				$ 94.82
5	8268862		Tower, Pressure				$ 72.62
6	WP8268645		Wheel & Transport Assembly (4)   (Replaces: 8268645)			Immediately	$ 62.31
7	W11837103		Dishrack, Lower   (Replaces: 8539208)				$ 179.58
8	8268871		Support Lock, Spray Arm				$ 5.65
9	WP8539107		Basket, Silverware   (Replaces: 8539107)				$ 122.66
10	8539093		Lid, Basket		Appelez-nous	-
11	WP3376846		Seal, Lower Sprayarm   (Replaces: 3376846)			Immediately	$ 10.12
12	WP3385089		Track   (Replaces: 3385089)			Immediately	$ 80.00
13	WP8565925		Stop, Track (4)   (Replaces: 8565920)			Immediately	$ 6.87
14	8562003		Basket, Small Item		Appelez-nous	-
15	WPW10204131		Wheel Assembly   (Replaces: W10204131)			Immediately	$ 9.16
16	W11752368		Dishrack, Upper   (Replaces: W10164198)				$ 274.61
17	WP8268874		Sprayarm, Lower   (Replaces: 8268874)				$ 127.32
18	3367910		Cap, Nozzle				$ 39.70
19	719576		Bearing, Nozzle				$ 7.48
