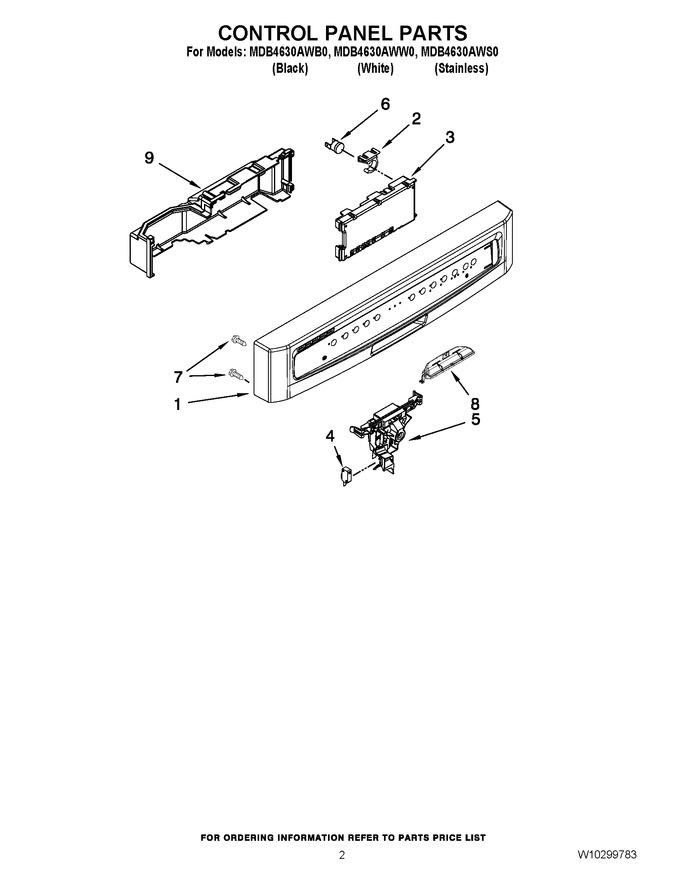

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10275140 | Console Asm. (includes Active Overlay & Insert) (black) |
|
- | |||||
| 1 | W10275141 | Console Asm. (includes Active Overlay & Insert) (white) |
|
- | |||||
| 2 | 8546546 | Clip, Bi-metal |
|
$ 7.82 | |||||
| 3 | W11202742 | Control, Electronic (Replaces: W10298340) |
|
$ 177.44 | |||||
| 4 | WP8269209 | Switch, Door (Replaces: 8269209) |
|
Immediately | $ 41.24 | ||||
| 5 | WPW10240053 | Latch Assembly (Replaces: W10240053) |
|
$ 107.64 | |||||
| 6 | W10258275 | Bi-metal (Replaces: 661663) |
|
Immediately | $ 41.71 | ||||
| 7 | WP304231 | Screw (Replaces: 304231) |
|
Immediately | $ 7.75 | ||||
| 8 | W10240154 | Handle, Latch (black) |
|
$ 130.19 | |||||
| 8 | W10240155 | Handle, Latch (white) |
|
$ 130.05 | |||||
| 9 | W10158350 | Cover,cntrl Assy |
|
$ 26.50 |
