SELECT A DIAGRAM

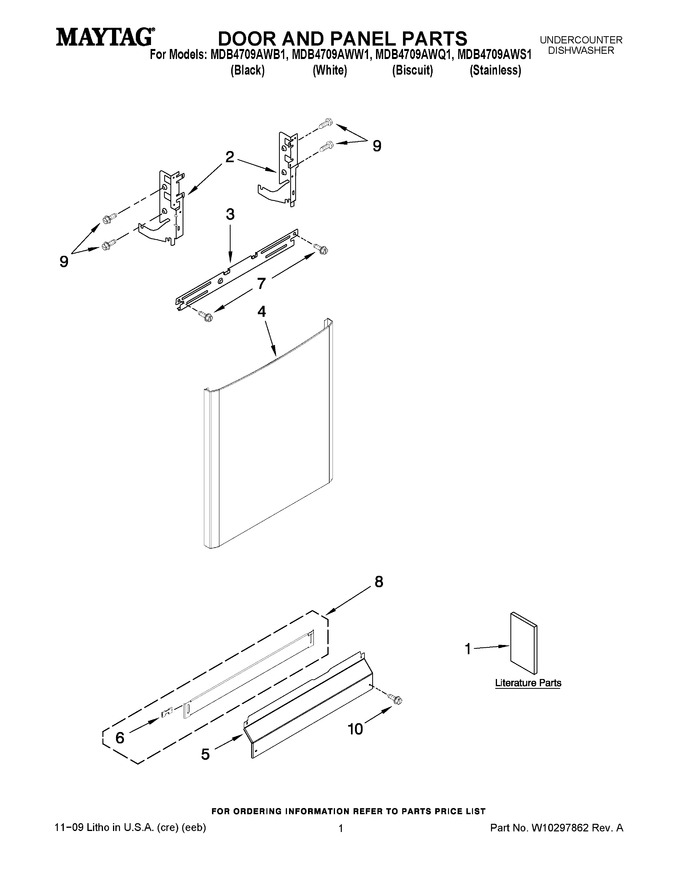

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10240115		Instructions, Installation		Appelez-nous	-
1	W10240159		Energy Guide		Appelez-nous	-
1	W10240116		Guide, Use & Care English/french		Appelez-nous	-
1	W10240117		Guide, Use & Care Spanish		Appelez-nous	-
1	W10142800		Tech Sheet		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Stiffener, Door				$ 38.77
4	W10240063		Panel Front (stainless)				$ 151.39
4	W10240062		Panel Front (biscuit)		Appelez-nous	-
4	W10240061		Panel Front (white)		Appelez-nous	-
4	W10240060		Panel Front (black)		Appelez-nous	-
5	W11763736		Access Panel (black)   (Replaces: 8573255)			Immediately	$ 42.25
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 170.94
6	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 11.21
7	304932		Screw		Appelez-nous	-
8	WP8573287		Toe Panel (white)   (Replaces: 8573287)				$ 177.69
8	8573288		Toe Panel (biscuit)				$ 67.15
8	W10871196		Toe Panel (black)   (Replaces: 8573286)				$ 174.04
9	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
10	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
10	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
