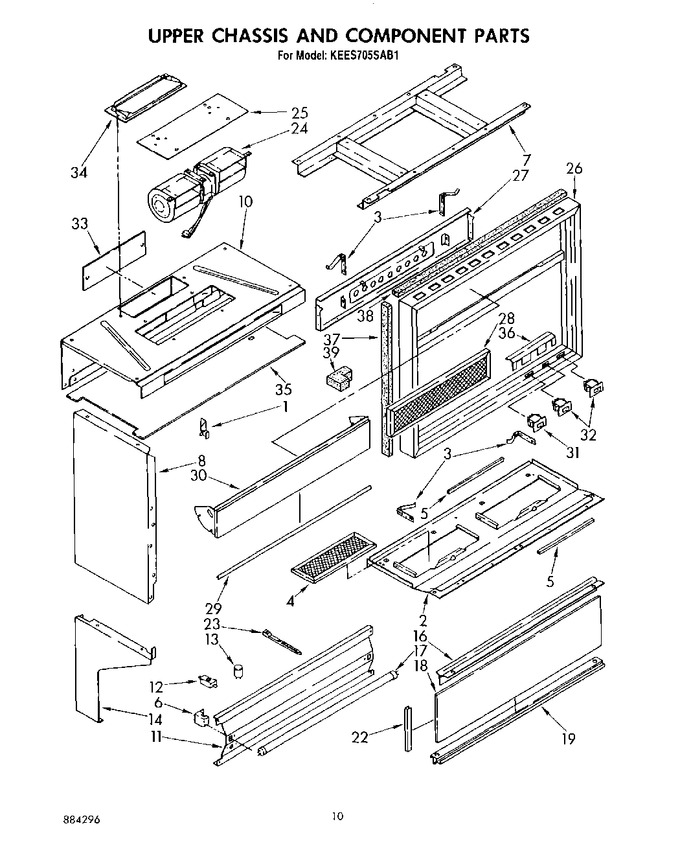

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3147487		Bracket, Stop L.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (6)   (Replaces: 343641)			Immediately	$ 8.47
1	3147486		Bracket, Stop R.h.		Appelez-nous	-
2	314216		Panel, Bottom		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
2	312783		Bumper (4)		Appelez-nous	-
2	3147593		Seal, Foam		Appelez-nous	-
3	3147525		Clip (4)		Appelez-nous	-
4	3147608		Filter, Mesh (2)		Appelez-nous	-
5	3147756		Edge, Protector (2)		Appelez-nous	-
6	3147245		Socket, Assembly R.h.		Appelez-nous	-
6	3147244		Socket, Assembly L.h.		Appelez-nous	-
6	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
7	WP681414		Screw, 10-16 X 1/2 (10)   (Replaces: 343641)			Immediately	$ 8.47
7	330677		Support, Frame		Appelez-nous	-
8	WP681414		Side Panel, L.h. (screw, 10-16 X 1/2 (6))   (Replaces: 343641)			Immediately	$ 8.47
8	3147143		Side Panel L.h. (white)		Appelez-nous	-
8	3147145		Side Panel L.h. (almond)		Appelez-nous	-
8	WP488627		Side Panel, L.h. (screw, 8a X 1/2 (2))   (Replaces: 338156)				$ 8.11
8	3147591		Side Panel L.h. (seal, Foam (2))		Appelez-nous	-
8	3147592		Side Panel, L.h. (seal, Foam (2))		Appelez-nous	-
8	3147144		(side Panel, R.h.) (almond)		Appelez-nous	-
8	3147142		(side Panel, R.h.) (white)		Appelez-nous	-
10	3170318		Top Panel		Appelez-nous	-
10	WP488729		Screw, 8 - 18 X .50 (6)   (Replaces: 313638)			Immediately	$ 8.28
11	3147589		Panel, Backguard		Appelez-nous	-
12	3147224		Socket, Flourscent		Appelez-nous	-
13	387695		Starter, Lamp				$ 8.20
14	WP681414		End Trim (screw, 10-16 X 1/2 (4))   (Replaces: 343641)			Immediately	$ 8.47
14	314204		End Trim (almond, Lh)		Appelez-nous	-
14	314203		End Trim R.h. (white)		Appelez-nous	-
14	314199		End Trim R.h. (almond)		Appelez-nous	-
14	314198		End Trim R.h. (almond)		Appelez-nous	-
14	308043		End Trim (screw, 10-12 X 7/8 (2))		Appelez-nous	-
16	313320		Trim, Glass (top)		Appelez-nous	-
17	WP95292		Lamp, Fluorescent   (Replaces: 95292)			Immediately	$ 134.94
18	3147674		Glass Panel		Appelez-nous	-
19	313321		Trim, Glass (bottom)		Appelez-nous	-
19	WP90767		Screw, 8a X 3/8 (2)   (Replaces: 90767)			Immediately	$ 8.25
22	313319		Trim, End (glass) (2)		Appelez-nous	-
23	WPW10339879		Cable Tie (2)   (Replaces: 309330)				$ 8.30
24	3147817		Blower, Exhaust		Appelez-nous	-
25	3147866		Nut (6)		Appelez-nous	-
25	WP488729		Screw, 8-18 X .50 (4)   (Replaces: 313638)			Immediately	$ 8.28
25	3147798		Cover, Access		Appelez-nous	-
26	309133		Screw, 8-a X 5/8 (2)		Appelez-nous	-
26	3170174		Frame		Appelez-nous	-
27	3147712		Panel, Vent Door		Appelez-nous	-
27	3147724		Screw, Schoulder (2)		Appelez-nous	-
27	3147858		Rivet (2)		Appelez-nous	-
27	3147764		Spring, Vent Door (2)		Appelez-nous	-
27	3147755		Rivet, Plastic (2)		Appelez-nous	-
28	3147525		Clip (2)		Appelez-nous	-
28	3147609		Filter, Aluminum		Appelez-nous	-
29	3147763		Handle, Vent Door		Appelez-nous	-
29	WP313808		Screw, 6-32 X 9/32 (3)   (Replaces: 313808)				$ 8.30
30	3170269		Door, Vent		Appelez-nous	-
31	WP3147265		Switch, Rocker (exhaust)   (Replaces: 3147265)				$ 148.88
32	WP4314961		Switch, Rocker (2)   (Replaces: 314134)				$ 93.95
33	3147726		Cover, Exhaust		Appelez-nous	-
34	3147843		Damper		Appelez-nous	-
35	3147250		Seperator, Air		Appelez-nous	-
35	3147590		Seal, Foam		Appelez-nous	-
36	3148158		Insulator		Appelez-nous	-
37	3147595		Seal, Foam (2)		Appelez-nous	-
38	3147596		Seal, Foam		Appelez-nous	-
39	3147751		Seal, Foam (2)		Appelez-nous	-
