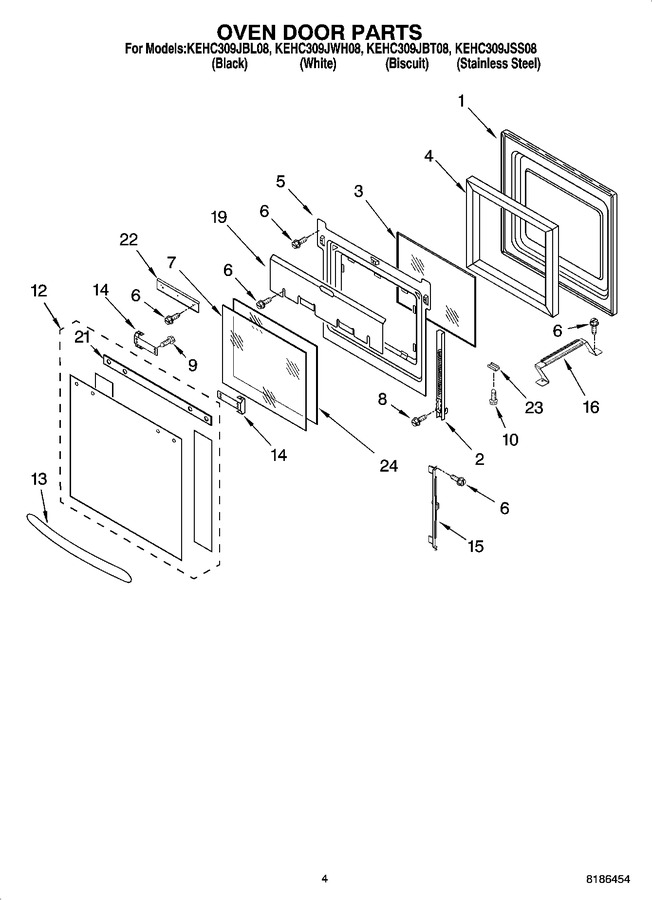

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Liner, Door   (Replaces: 9759413)				$ 370.46
2	WP9760576		Hinge, Door (l.side (clear))   (Replaces: 9760576)			Immediately	$ 56.46
2	WP9760575		Hinge, Door (r.side (clear))   (Replaces: 9760575)			Immediately	$ 64.57
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
8	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
9	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
10	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
12	W10401225		Door Glass, Assy (stainless Steel)   (Replaces: 4452316)				$ 321.60
12	4455395		Door Glass, Assy (biscuit)		Appelez-nous	-
12	4455390		Door Glass, Assy (white)		Appelez-nous	-
12	4455391		Door Glass, Assy (black)		Appelez-nous	-
13	4452502		Door Handle (black)		Appelez-nous	-
13	4452503		Door Handle (white)		Appelez-nous	-
13	4452871		Door Handle (biscuit)		Appelez-nous	-
13	4455851		Door Handle (stainless Steel)		Appelez-nous	-
14	4455803		Bracket, Handle (right Hand)				$ 30.70
14	4455804		Bracket, Handle (left Hand)				$ 25.95
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
16	9759230		Bracket (3rdglass)				$ 36.30
19	4457104		Shield, Heat   (Replaces: 4457103)				$ 39.22
21	4452326		Seal, Door Top		Appelez-nous	-
22	4457114		Shield, Heat				$ 217.79
23	4450864		Retainer, Glass-clip (white)		Appelez-nous	-
23	4452119		Retainer, Glass-clip (biscuit)		Appelez-nous	-
23	4451432		Retainer, Glass-clip (stainless Steel)		Appelez-nous	-
23	4450863		Retainer, Glass-clip (black)		Appelez-nous	-
24	9759228		Glass, Inner				$ 87.91
