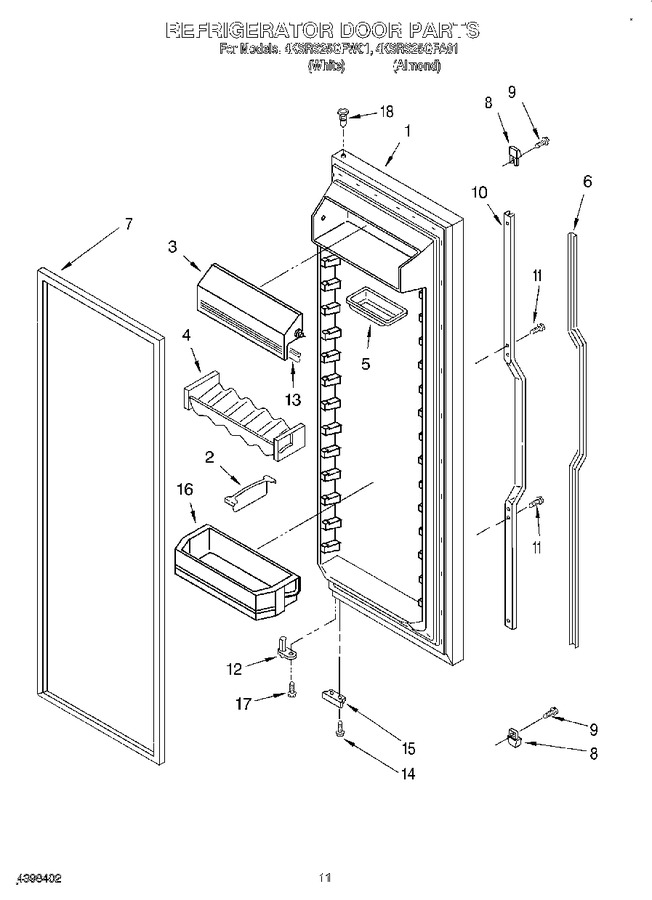

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194233W		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2194233N		Refrigerator Door (includes No.7) (almond)		Appelez-nous	-
2	2195497		Load, Lock (4)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Tray, Butter		Appelez-nous	-
6	2173825		Insert, Handle (white)		Appelez-nous	-
6	2173828		Insert, Handle (almond)		Appelez-nous	-
7	2159075		Door, Gasket Magnetic (service)			Immediately	$ 317.14
8	2194778W		End Cap, Handle (white)		Appelez-nous	-
8	2194778N		End Cap, Handle (almond)		Appelez-nous	-
9	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
10	2194777W		Retainer, Insert (white)		Appelez-nous	-
10	2194777N		Retainer, Insert (almond)		Appelez-nous	-
11	WP489463		Screw   (Replaces: 489463)				$ 7.82
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	2159124		Gasket		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 10.87
15	2195950		Bracket, Door Stop				$ 5.84
16	2171063		Shelf Bin (4)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
18	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 7.76
