Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT4453160 Literature Parts (use & Care Guide (oven)) Appelez-nous -
1 LIT4450412 Literature Parts (installation Instructions) Appelez-nous -
1 LIT4452969 Literature Parts (use & Care Guide (microwave)) Appelez-nous -
1 LIT4450786 Literature Parts (cooking Guide (lable)) Appelez-nous -
1 LIT4449066 Literature Parts (cookbook (t/c Oven)) Appelez-nous -
1 LIT4453233 Literature Parts (tech Sheet (oven)) Appelez-nous -
1 LIT4449264 Literature Parts (easy Set Guide) Appelez-nous -
1 LIT3191638 Safer Cooking Tips Appelez-nous -
3 4454665 Hinge Receiver (right Hand) Appelez-nous -
3 4454664 Hinge Receiver (left Hand) Appelez-nous -
4 4448520 Bumper, Door Special Order $ 22.25

5 4455430 Trim, Side Right Hand (black) Special Order $ 67.89

5 4455431 (trim, Side Left Hand) (black) Special Order $ 65.17

5 4455433 (trim, Side Left Hand) (white) Appelez-nous -
5 4455435 (trim, Side Left Hand) (biscuit) Appelez-nous -
5 4452084 (trim, Side Left Hand) (stainless Steel) Appelez-nous -
5 WP8281236 Trim, Side Right Hand (screw) (black)   (Replaces: 4449747) Special Order $ 7.56

5 4449041 Trim, Side Right Hand (screw) (white) Special Order $ 5.27

5 4452083 Trim, Side Right Hand (stainless Steel) Appelez-nous -
5 4455432 Trim, Side Right Hand (white) Appelez-nous -
5 4455434 Trim, Side Right Hand (biscuit) Appelez-nous -
6 WP4455509 Bracket, Support   (Replaces: 4455509) Special Order $ 89.53

7 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

7 4455286 Top, Chassis Appelez-nous -
8 4452492 Insulation, Top Appelez-nous -
9 W10861715 Tube, Vent   (Replaces: 4452158) Special Order $ 116.63

10 4452163 Lens, Light Special Order $ 12.33

11 4449748 Screw Special Order $ 14.23

11 WP4448972 Oven Light Assy   (Replaces: 4448972) Special Order $ 109.40

12 WP4452164 Bulb, Light   (Replaces: 4452164) In-Stock Immediately $ 67.32

13 4452491 Insulation, Grill Appelez-nous -
14 4451740 Frame, Front Appelez-nous -
14 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

14 WP4450118 Nut   (Replaces: 4450118) Special Order $ 7.95

15 W11675844 Gasket, Door   (Replaces: 4455382) In-Stock Immediately $ 69.75

19 4451478 Support, Insulation Special Order $ 54.10

20 4451605 Cap, Spacer Special Order $ 38.55

21 WP4449154 Rail, Side (screw)   (Replaces: 4449154) Special Order $ 7.56

21 4450583 Rail, Side (right Side) Appelez-nous -
21 4450584 Rail, Side (left Side) Appelez-nous -
21 WP4448444 Rail, Side (grommet)   (Replaces: 4448444) Special Order $ 7.48

25 4454691 Side, Chassis (r.h. & L.h.) Appelez-nous -
25 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

26 4452234 Back, Chassis Appelez-nous -
26 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

27 N/A Liner, Oven (not Serviceable) Appelez-nous -
29 4451665 Sensor Special Order $ 107.99

29 WP4449154 Screw   (Replaces: 4449154) Special Order $ 7.56

30 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

30 4449845 Bracket-support Appelez-nous -
31 4455510 Bracket, Support Appelez-nous -
33 4452496 Deflector, Vent Appelez-nous -
34 4451667 Vent, Center Appelez-nous -
34 WP4450038 Screw   (Replaces: 4450038) Special Order $ 7.60

34 4452260 Spacer, Foam Appelez-nous -
37 WP9759243 Thermostat (tod) (temp.) Spst   (Replaces: 4451442) In-Stock Immediately $ 55.44

37 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

43 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

43 4455530 Base, Chassis Appelez-nous -
49 WP4448933 Retainer, Gasket   (Replaces: 4448933) Special Order $ 8.86

49 WP4449154 Screw   (Replaces: 4449154) Special Order $ 7.56

50 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

50 WP4451747 Cover-back   (Replaces: 4451747) Special Order $ 142.92

51 4455443 Trim, Bottom (black) Appelez-nous -
51 4159465 Trim, Bottom (screw) Appelez-nous -
51 4452152 Trim, Bottom (bracket, Mounting Bottom Trim) Special Order $ 35.18

51 4455147 Trim, Bottom (stainless Steel) Special Order $ 96.52

51 4455447 Trim, Bottom (biscuit) Appelez-nous -
51 4455445 Trim, Bottom (white) Appelez-nous -
52 4450365 Insulation, Back Special Order $ 70.95

52 4451756 Chassis, Back Appelez-nous -
52 W11684730 Insulation, Wrap   (Replaces: 4449316) Special Order $ 118.90


    View Diagram in Separate Window     Print Icon   Print Part List

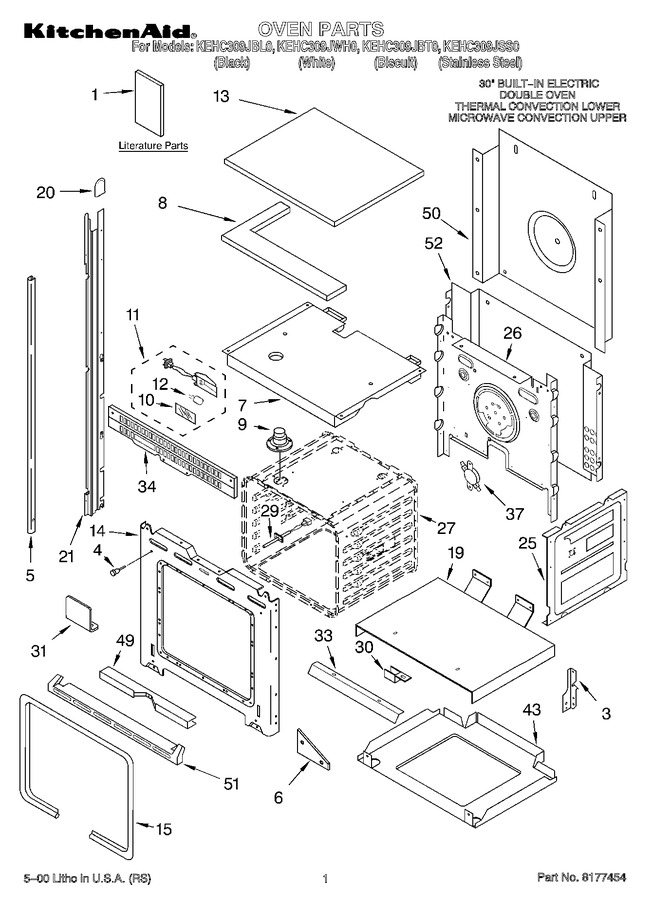

Diagram for KEHC309JWH0
