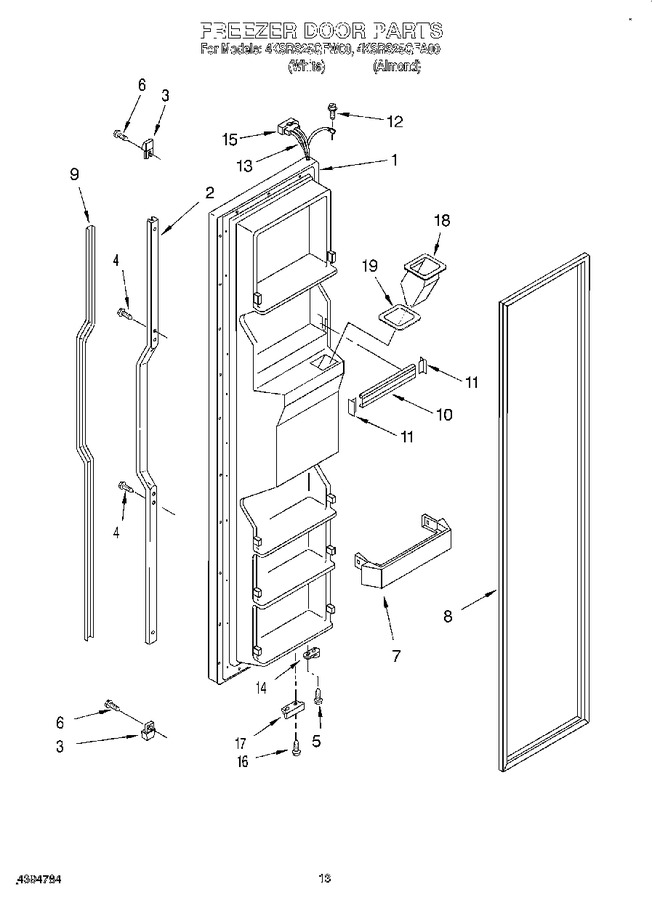

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195145N		Freezer Door (includes No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
1	2195145W		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2194777W		Retainer, Insert (white)		Appelez-nous	-
2	2194777N		Retainer, Insert (almond)		Appelez-nous	-
3	2194778N		End Cap (2) (almond)		Appelez-nous	-
3	2194778W		End Cap (2) (white)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 8.25
5	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
6	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (service)				$ 325.70
9	2173828		Insert, Handle (almond)		Appelez-nous	-
9	2173825		Insert, Handle (white)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2195931)			Immediately	$ 24.27
11	WP2156006		End Cap   (Replaces: 2156006)			Immediately	$ 12.79
12	WP488234		Screw   (Replaces: 489422)				$ 7.08
13	2180229		Wire Harness				$ 73.70
14	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
15	WP2154473		Connector   (Replaces: 2162412)				$ 24.83
16	WP489483		Screw   (Replaces: 489420)				$ 11.41
17	2195950		Bracket, Door Stop				$ 5.84
18	2180204		Chute, Ice		Appelez-nous	-
19	2198249		Seal, Housing		Appelez-nous	-
