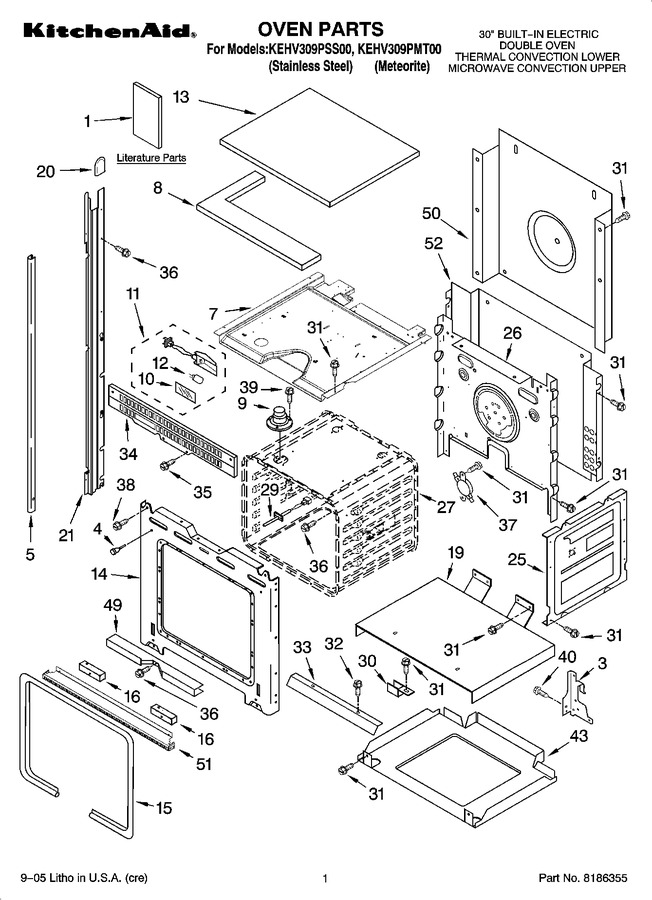

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | 9759133 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | 8300653 | Installation Instructions |
|
- | |||||
| 1 | 8302973 | Use & Care Guide (oven) |
|
- | |||||
| 1 | 8302974 | Use & Care Guide (microwave) |
|
- | |||||
| 1 | 4453330 | Cooking Guide (lable) |
|
- | |||||
| 1 | 4452967 | Chart, High Speed Cooking |
|
- | |||||
| 1 | 8302001 | Tech Sheet (oven) |
|
- | |||||
| 1 | 4449264 | Easy Set Guide |
|
- | |||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 119.41 | ||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 115.36 | ||||
| 4 | 4448520 | Bumper, Door |
|
$ 21.19 | |||||
| 5 | 8302498 | Trim, Side Right Hand (stainless Steel) |
|
- | |||||
| 5 | 8302499 | Trim, Side Left Hand (stainless Steel) |
|
- | |||||
| 5 | 8302501 | Trim, Side Left Hand (meteorite) |
|
- | |||||
| 5 | 8302500 | Trim, Side Right Hand (meteorite) |
|
- | |||||
| 7 | 8303099 | Top Chassis |
|
$ 70.97 | |||||
| 8 | 4452492 | Insulation, Top |
|
- | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 116.63 | |||||
| 10 | 4452163 | Lens, Light |
|
$ 12.33 | |||||
| 11 | WP4448972 | Oven Light Assy (Replaces: 4448972) |
|
$ 109.40 | |||||
| 12 | WP4452164 | Bulb, Light (Replaces: 4452164) |
|
Immediately | $ 67.32 | ||||
| 13 | 4452491 | Insulation, Grill |
|
- | |||||
| 14 | 9759060 | Frame, Front |
|
- | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 69.75 | ||||
| 16 | 4452490 | Spacer, Foam |
|
$ 34.83 | |||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 20 | 4451605 | Cap, Spacer |
|
$ 38.55 | |||||
| 21 | 4450583 | Rail, Side (right Side) |
|
- | |||||
| 21 | 4450584 | Rail, Side (left Side) |
|
- | |||||
| 25 | W10782197 | Side, Chassis (r.h. & L.h.) (Replaces: 4455641) |
|
$ 143.51 | |||||
| 26 | 4452234 | Back, Chassis |
|
- | |||||
| 27 | N/A | Liner, Oven (not Serviceable) |
|
- | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 95.83 | ||||
| 30 | 4449845 | Bracket-support |
|
- | |||||
| 31 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.19 | ||||
| 32 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 7.60 | |||||
| 33 | 9760678 | Deflector, Vent |
|
- | |||||
| 34 | 8302592 | Vent, Center |
|
$ 63.42 | |||||
| 35 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 7.75 | ||||
| 36 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.56 | |||||
| 37 | WP9759243 | Thermostat (tod) (120c) Spst (Replaces: 9759243) |
|
Immediately | $ 55.44 | ||||
| 38 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 39 | 4449748 | Screw |
|
$ 13.55 | |||||
| 40 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 7.19 | |||||
| 43 | 9759713 | Base, Chassis |
|
$ 100.19 | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 8.86 | |||||
| 50 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 142.92 | |||||
| 51 | 8301629 | Trim, Bottom (meteorite) |
|
- | |||||
| 51 | 8301590 | Trim, Bottom (stainless Steel) |
|
- | |||||
| 52 | 4450365 | Insulation, Back |
|
$ 70.95 | |||||
| 52 | N/A | Following Parts Not Illustrated Insulation |
|
- | |||||
| 52 | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 118.90 | |||||
| 52 | 4451756 | Chassis, Back |
|
- |
