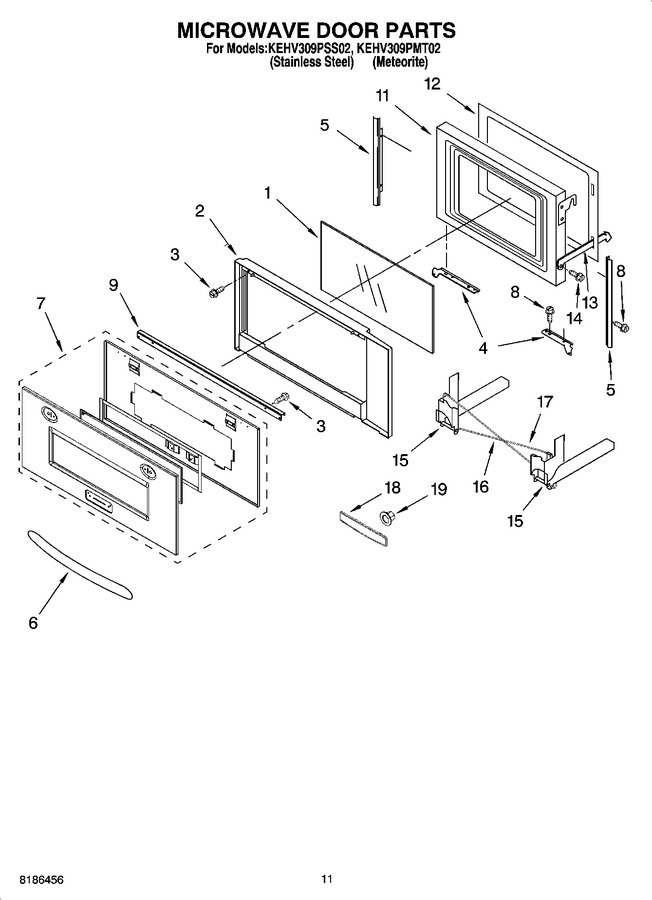

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4448937 | Glass, Middle |
|
$ 66.02 | |||||
| 2 | WP8303556 | Frame, Door (Replaces: 8303556) |
|
$ 265.47 | |||||
| 2 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 8.30 | |||||
| 3 | 312713 | Screw (4) |
|
- | |||||
| 4 | 4449142 | Bracket, Mounting (left Side) |
|
$ 52.12 | |||||
| 4 | 4449141 | Bracket, Mounting (right Side) |
|
$ 31.33 | |||||
| 5 | 4449083 | Filler, Side (right Side) |
|
$ 36.44 | |||||
| 5 | 4449086 | Filler, Side (left Side) |
|
$ 36.10 | |||||
| 6 | 8301679 | Handle, Door (stainless Steel) |
|
- | |||||
| 7 | 8302492 | Glass, Outer (meteorite) |
|
- | |||||
| 7 | 8302491 | Glass, Outer (stainless Steel) |
|
- | |||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 9 | 4452331 | Bracket, Handle |
|
$ 48.67 | |||||
| 11 | 4375339 | Door, Plate |
|
- | |||||
| 12 | 4375414 | Frame, Inner |
|
- | |||||
| 13 | 4375330 | Strap, Door |
|
- | |||||
| 14 | 4375313 | Screw |
|
- | |||||
| 15 | WP4375324 | Hinge, Door (right) (Replaces: 4375324) |
|
$ 92.63 | |||||
| 15 | WP4375323 | Hinge, Door (left) (Replaces: 4375323) |
|
$ 92.98 | |||||
| 16 | WP4452396 | S.steel (rh) (Replaces: 4452396) |
|
Immediately | $ 98.60 | ||||
| 16 | WP4451009 | Spring, Torsion (rh) (Replaces: 4451009) |
|
$ 140.51 | |||||
| 17 | WP4452395 | Spring, Torsion (lh) (Replaces: 4452395) |
|
Immediately | $ 146.14 | ||||
| 18 | 8531788 | Nameplate |
|
- | |||||
| 19 | 4453107 | Palnut |
|
- | |||||
| N/A | Miscellaneous |
|
- | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 8301909 | Harness, Latch |
|
$ 142.12 | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | |||||
| 8301923 | Harness, Main |
|
- | ||||||
| 8303838 | Harness, Mn Fltr |
|
$ 328.77 | ||||||
| 4450831 | Ground (m/w) |
|
$ 7.43 | ||||||
| 4450800 | Screw, Ground |
|
$ 13.47 | ||||||
| 4450950 | Conduit, Combo |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| 4452222 | Spacer, Harness |
|
- | ||||||
| WPW10339879 | Tie, Cable (Replaces: 4454835) |
|
$ 8.30 | ||||||
| 4452400 | Lead, Ground |
|
$ 45.42 | ||||||
| WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 8.16 | ||||||
| 814381 | Hinge Pin Kit |
|
$ 11.28 | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 2261590 | Cleaner, S.steel |
|
- | ||||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 27.83 | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 63.51 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 59.89 | ||||||
| 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
$ 59.89 | ||||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- |
