SELECT A DIAGRAM

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts

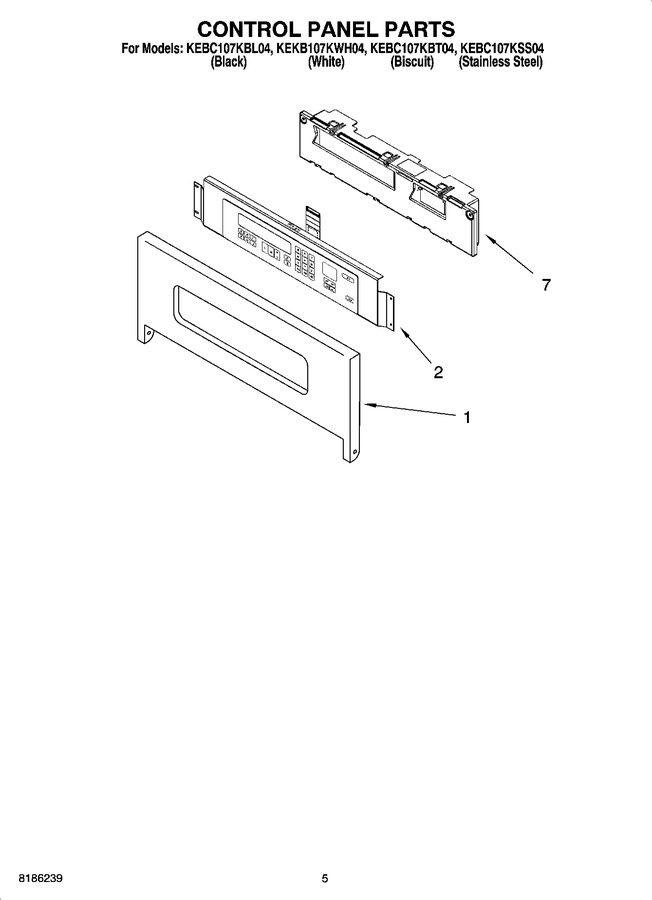

04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4452604		Panel, Control (black)		Appelez-nous	-
1	4452605		Panel, Control (white)		Appelez-nous	-
1	4452974		Panel, Control (biscuit)		Appelez-nous	-
1	4451791		Panel, Control Stainless Steel		Appelez-nous	-
2	8302738		Switch Membrane (black)				$ 305.94
2	8302734		Switch Membrane (white)		Appelez-nous	-
2	8302730		Switch Membrane (biscuit)		Appelez-nous	-
2	8302727		Switch Membrane (stainless Steel)		Appelez-nous	-
7	8302311		Assy, Control		Appelez-nous	-
7	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
