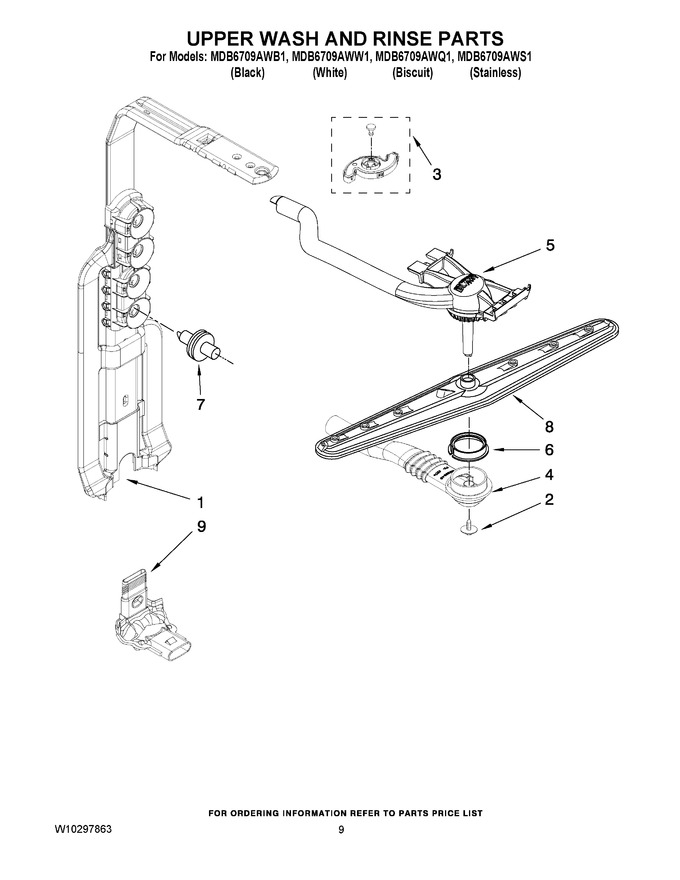

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10254862 | Feed Tube Silverware Zone (also Inc. No.3) |
|
$ 102.56 | |||||
| 2 | WPW10349488 | Screw (Replaces: 8533889) |
|
$ 8.97 | |||||
| 3 | 8193983 | Spinner, 3rd Level Wash (Replaces: 8557720) |
|
Immediately | $ 25.27 | ||||
| 4 | W11676532 | Manifold (Replaces: W10240137) |
|
$ 47.02 | |||||
| 5 | W10199811 | Mount,spray Arm |
|
$ 73.28 | |||||
| 6 | WP8268433 | Seal, Sprayarm (Replaces: 8268433) |
|
Immediately | $ 11.77 | ||||
| 7 | WPW10082831 | Nozzle-feed (Replaces: W10082831) |
|
Immediately | $ 48.24 | ||||
| 8 | W10240064 | Spray Arm |
|
$ 103.06 | |||||
| 9 | 8575244 | Valve Assy, Manifold |
|
$ 83.35 |
