Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4452604 Panel, Control (black) Appelez-nous -
1 4452605 Panel, Control (white) Appelez-nous -
1 4452974 Panel, Control (biscuit) Appelez-nous -
2 4453377 Microcomputer Appelez-nous -
2 WP4449745 Screw   (Replaces: 4449745) Special Order $ 7.98

3 8300874 W/membrane Switch (black) Appelez-nous -
3 8300875 W/membrane Switch (white) Appelez-nous -
3 8300876 W/membrane Switch (biscuit) Appelez-nous -
3 WP3400832 W/membrane Switch (screw)   (Replaces: 3400832) In-Stock Immediately $ 8.18

4 4451592 Filter Special Order $ 35.89

5 4451632 Bracket, Filter Appelez-nous -
6 4452248 Insulator, Board Appelez-nous -
7 4452249 Insulator, Board Support Appelez-nous -
8 4452345 Insulator, Dialectric Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

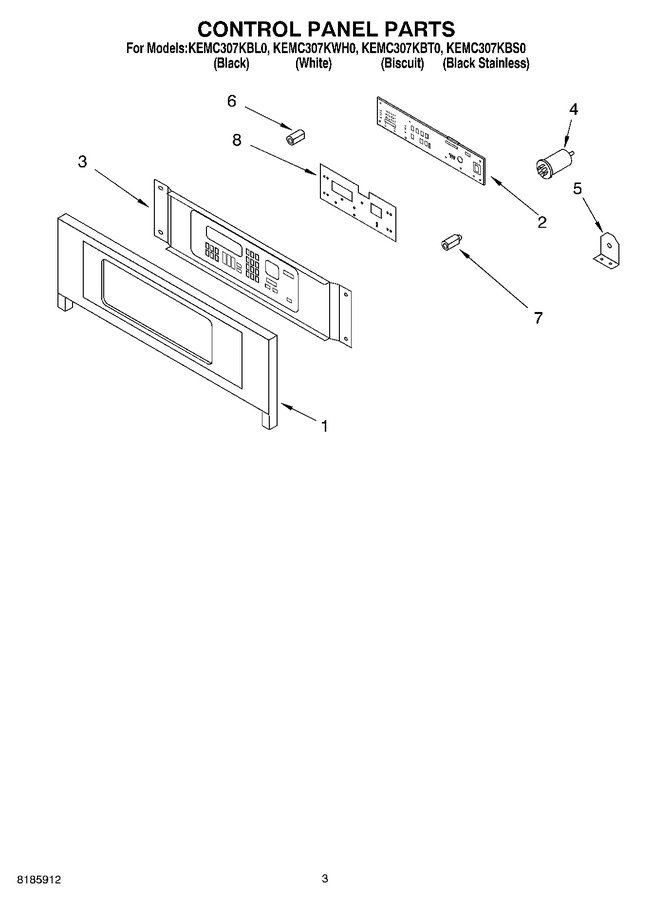

Diagram for KEMC307KBL0
