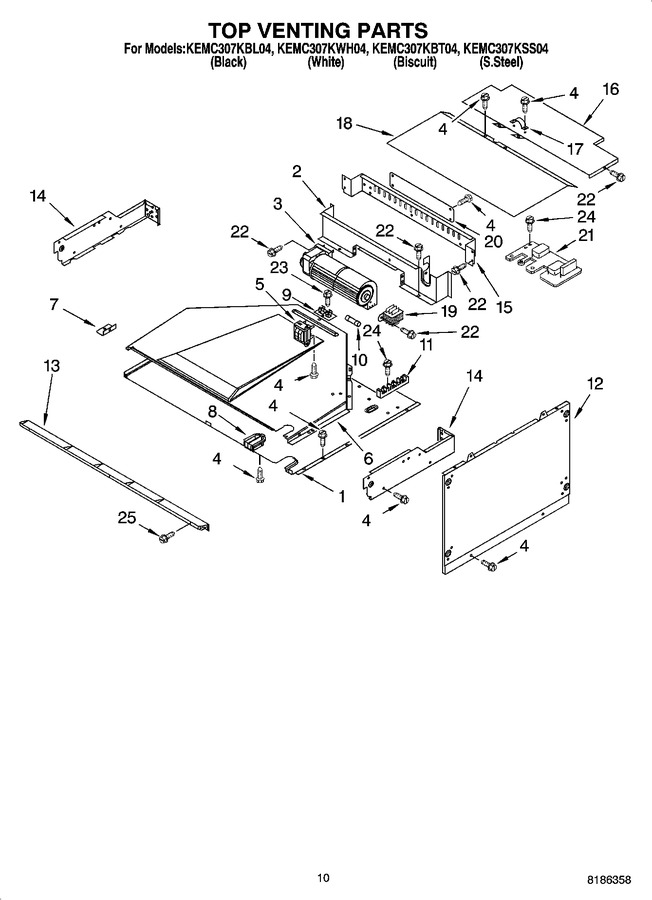

08 - Top Venting Parts


09 - Microwave Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450378		Cover, Top		Appelez-nous	-
2	4448935		Baffle, Blower		Appelez-nous	-
3	4450920		Blower		Appelez-nous	-
4	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
5	WP9760588		Transformer, (lights)   (Replaces: 6610122)				$ 263.41
6	4451634		Exhaust Duct		Appelez-nous	-
7	4450027		Bracket, Duct		Appelez-nous	-
8	4449964		Grommet		Appelez-nous	-
9	4454949		Holder, Fuse				$ 90.70
10	WPW10017410		Fuse   (Replaces: 4454976)			Immediately	$ 21.17
11	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 30.13
12	4452559		Side, Combo		Appelez-nous	-
13	4456145		Vent, Control Panel		Appelez-nous	-
14	W10755214		Side, Control Top (right)   (Replaces: 4451597)		Appelez-nous	-
14	W10790240		Side, Control Top (left)   (Replaces: 4451598)				$ 74.68
15	4452244		Back, Control		Appelez-nous	-
16	4450551		Cover, Top Rear		Appelez-nous	-
17	4448664		Clamp				$ 20.39
18	WP4452367		Cover, Top Front   (Replaces: 4452367)				$ 76.14
19	4455038		Transformer, Control Panel		Appelez-nous	-
20	4452247		Plate, Cover		Appelez-nous	-
21	4451934		Suppressor				$ 61.73
22	313806		Screw		Appelez-nous	-
23	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
24	W11684512		Screw   (Replaces: 3400080)				$ 14.10
25	WP4450038		Screw   (Replaces: 4450038)				$ 7.60
