Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP9759413 Door Liner   (Replaces: 4455618) Special Order $ 370.46

2 WP9760575 Hinge, Door (r.side (clear))   (Replaces: 8300575) In-Stock Immediately $ 64.57

2 WP9760576 Hinge, Door (l.side (clear))   (Replaces: 8300576) In-Stock Immediately $ 56.46

2 WP4449743 Hinge, Door (screw)   (Replaces: 4449743) Special Order $ 7.55

3 WP4449259 Glass, Inner   (Replaces: 4449259) Special Order $ 213.34

4 WP4451722 Insulation, Door   (Replaces: 4451722) Special Order $ 189.77

5 8300778 Retainer, Glass Appelez-nous -
5 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

7 WP4449263 Glass, Inner   (Replaces: 4449263) In-Stock Immediately $ 167.89

12 4455391 Door Glass, Assy (black) Appelez-nous -
12 4455395 Door Glass, Assy (biscuit) Appelez-nous -
12 4455390 Door Glass, Assy (white) Appelez-nous -
13 4452871 Door Handle (biscuit) Appelez-nous -
13 4452502 Door Handle (black) Appelez-nous -
13 4452503 Door Handle (white) Appelez-nous -
14 4455804 Bracket, Handle (l.hand) Special Order $ 25.95

14 W10276642 Bracket, Handle (screw)   (Replaces: 4451040) Special Order $ 6.41

14 4455803 Bracket, Handle (r.hand) Special Order $ 30.70

19 4450362 Shield, Heat Appelez-nous -
19 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

20 4450470 Retainer, Glass Appelez-nous -
20 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

21 4452326 Seal, Door Top Appelez-nous -
23 4452119 Retainer, Glass-clip (biscuit) Appelez-nous -
23 4451432 Retainer, Clip (for Ss Model) Appelez-nous -
23 4450863 Retainer, Glass-clip (black) Appelez-nous -
23 4450864 Retainer, Glass-clip (white) Appelez-nous -
23 WP3400832 Retainer, Glass-clip (screw)   (Replaces: 3400832) In-Stock Immediately $ 8.18

24 8300974 Glass, Inner Special Order $ 82.26


    View Diagram in Separate Window     Print Icon   Print Part List

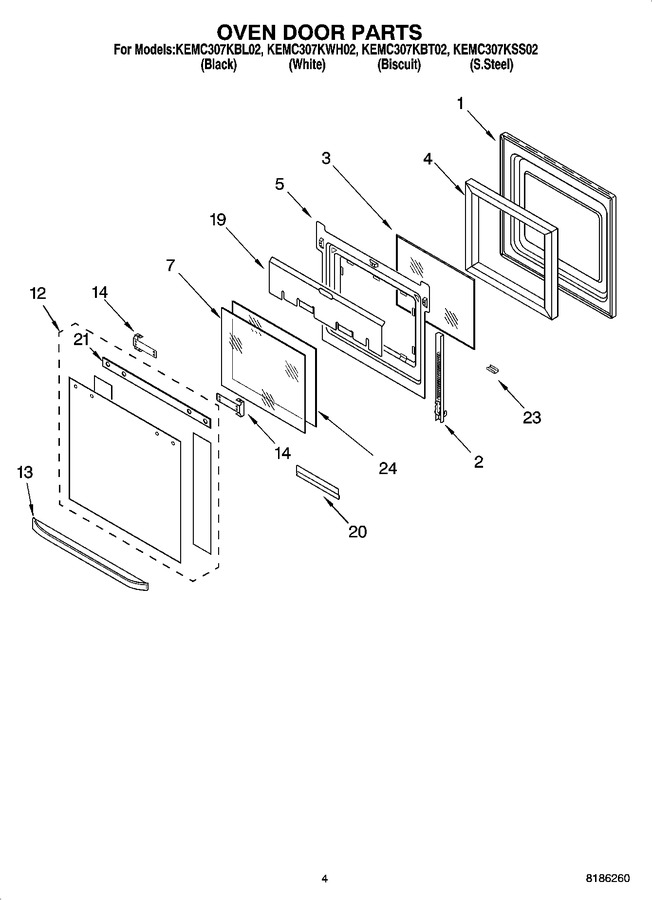

Diagram for KEMC307KBT02
