01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Top Venting Parts

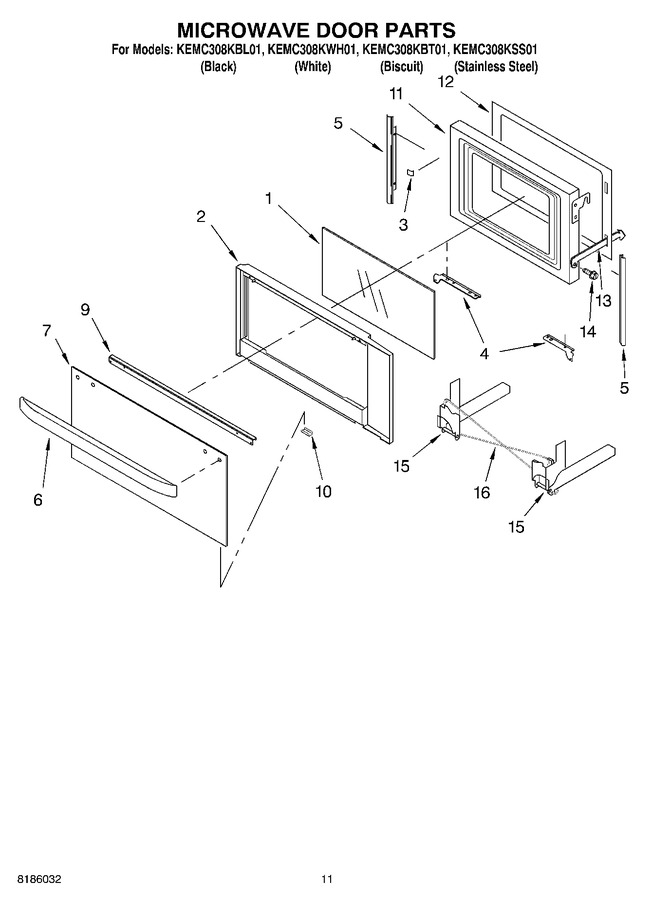

09 - Microwave Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4448937		Glass, Middle				$ 66.02
2	WP8303556		Frame, Door   (Replaces: 4450946)				$ 265.47
2	WP4450038		Screw   (Replaces: 4450038)				$ 7.60
3	4450265		Tape, Foam		Appelez-nous	-
4	WP4449809		Bracket, Mounting (screw)   (Replaces: 4449809)			Immediately	$ 7.19
4	4449141		Bracket, Mounting (right Side)				$ 31.33
4	4449142		Bracket, Mounting (left Side)				$ 52.12
5	4449083		Filler, Side (right Side)				$ 36.44
5	4449086		Filler, Side (left Side)				$ 36.10
5	WP4449809		Filler, Side (screw)   (Replaces: 4449809)			Immediately	$ 7.19
6	4452502		Handle, Door (black)		Appelez-nous	-
6	4452871		Handle, Door (biscuit)		Appelez-nous	-
6	4452088		Handle, Door (stainless Steel)		Appelez-nous	-
6	4452503		Handle, Door (white)		Appelez-nous	-
7	WP4452259		Glass, Outer (stainless (assy))   (Replaces: 4452259)			Immediately	$ 394.33
7	4452995		Glass, Outer (biscuit)		Appelez-nous	-
7	4452789		Glass, Outer (white)				$ 224.53
7	4452211		Glass, Outer (black)				$ 236.42
9	WPW10132940		Screw   (Replaces: 3196184)				$ 9.44
9	4452331		Bracket, Handle				$ 48.67
10	4450863		Retainer, Glass-clip (black)		Appelez-nous	-
10	4451432		Retainer, Glass-clip (stainless Steel)		Appelez-nous	-
10	4450864		Retainer, Glass-clip (white)		Appelez-nous	-
11	4375339		Door, Plate		Appelez-nous	-
12	4375414		Frame, Inner		Appelez-nous	-
13	4375330		Strap, Door		Appelez-nous	-
14	4375313		Screw		Appelez-nous	-
15	WP4375324		Hinge, Door (right)   (Replaces: 4375324)				$ 88.22
15	WP4375323		Hinge, Door (left)   (Replaces: 4375323)				$ 88.55
16	WP4451009		Torsion Spring   (Replaces: 4451009)				$ 133.82
	N/A		Miscellaneous		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
	4378944		Filler Kit (bl)				$ 468.78
	4378945		Filler Kit (wh)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4378946		Filler Kit (al)		Appelez-nous	-
	8301909		Harness, Latch				$ 135.35
	4452400		Lead, Ground				$ 43.26
	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
	8301923		Harness, Main		Appelez-nous	-
	4450831		Ground (m/w)				$ 7.43
	4450800		Screw, Ground				$ 12.83
	4450950		Conduit, Combo		Appelez-nous	-
	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
	4452222		Spacer, Harness		Appelez-nous	-
	WPW10339879		Tie, Cable   (Replaces: 4454835)				$ 7.90
	WP4448950		Screw, Install (4)   (Replaces: 4448950)				$ 7.56
	814381		Hinge Pin Kit				$ 8.59
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 26.50
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	261900		Paint, Spray (citrine White)				$ 57.04
	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)				$ 57.04
	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 63.51
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
